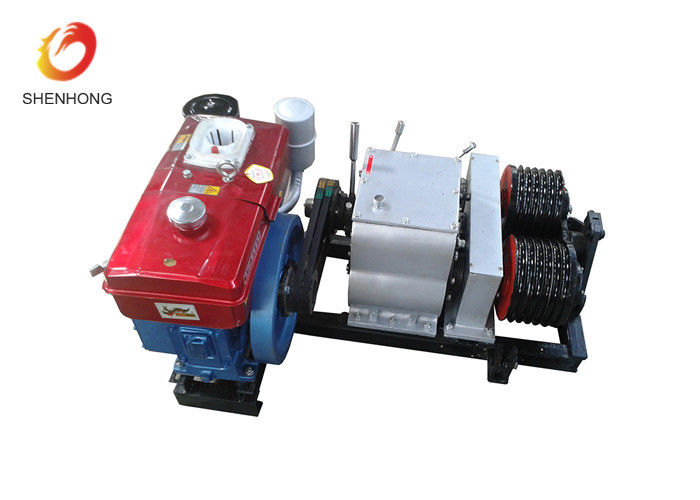

5T Double Capstan Cable Pulling Winch Machine Puller Hoist , Cable Winch Puller

5T Double Capstan Cable Pulling Winch Machine Puller Hoist , Cable Winch Puller
5T Double Capstan Cable Pulling Winch Machine Puller Hoist , Cable Winch Puller 5T Double Capstan Cable Pulling Winch Machine Puller Hoist , Cable Winch Puller

Large Image :  5T Double Capstan Cable Pulling Winch Machine Puller Hoist , Cable Winch Puller Get Best Price

Product Details:
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: SJM5Q
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: standard export wooden case
Delivery Time: 7 days after payment
Supply Ability: 500 set/sets per month
Detailed Product Description
Motor: Water Cooled Diesel Engine Capacity: 50KN
Type: Diesel Cable Winch Bottom Diameter Of Groove(mm): 15
Engine Power: 6.3KW Size: 1200×600×500
Capstan: Double
High Light:

engine powered winch

,

wire rope winch

5T Double Capstan Diesel Cable Pulling Winch Machine Puller Hoist



Quick details

1. Transimission line stringing tools

2. Dual-bull wheel powered winch

3. Groove number 7 5T double diesel power cable pulling winch machine puller hoist

4. Pull force 50kn 5T double diesel power cable pulling winch machine puller hoist

5. weight: 300kg 5T double diesel power cable pulling winch machine puller hoist



Application
Extensively applied to an under construction set of electric power, post and tele wire ways to tower group sets up the pole.Apply to use in the wild non-transformer station, it will be convenient and agility.



Uses

apply to hoisting mechanical equipments and erecting pole pylon . hauling and string conductors in post telephone. telegraph and electric power lines .


Feature

the whole machine is mounted on a framework with wheel hub for easy transportation.



Data sheet

Model JJM-5SQ/JJM-5SC
Engine HODNA GX390/186F Diesel Engine
Power 13HP,3600rpm/6.3KW,3600rpm
Suitable Wire Rope(mm) 15
Bottom diameter of Groove(mm) 240
No. Of Groove 6
Gear Forward Reverse
Slow I Slow II Fast I Fast II Slow Fast
Pull Force(KN) 50 30 13 10 No lifting No lifting
Speed(m/min) 6 10 23 30 5 17
Weight(KG) 280/300
Dimension(mm) 1330×800×600
