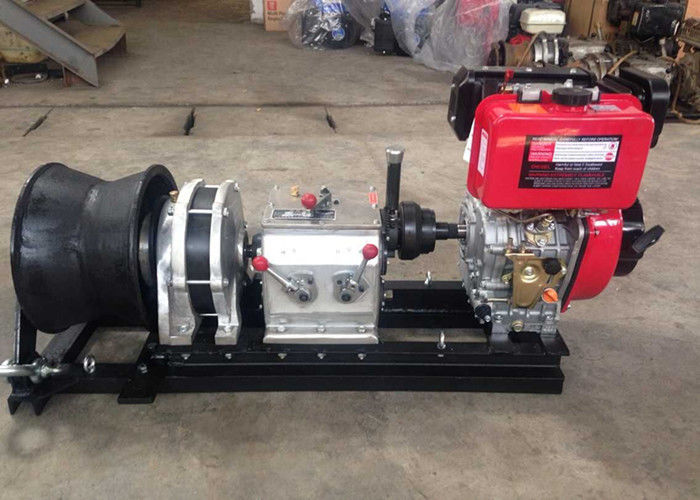

50KN Single Capstan Diesel Cable Winch 9HP Engine Power With 186F Diesel Engine

Product Details

Place of Origin: Jiangsu, China

Brand Name: SHENHONG

Certification: ISO

Model Number: JJM5B

Payment & Shipping Terms

Minimum Order Quantity: 1sets

Price: negotiation

Packaging Details: standard export wooden case

Delivery Time: 7 days after payment

Supply Ability: 500 set/sets per month

Get Best Price
Highlight:

engine powered winch

,

wire rope winch

Motor:
Air Cooled Diesel Engine
Capacity:
50KN
Type:
50KN Single Capstan Diesel Cable Pulling Winch
Usage:
Cable Pulling
Engine Power:
9HP
Weight:
180kg
Size:
1200×600×500
Transmission:
Shaft Driven
Motor:
Air Cooled Diesel Engine
Capacity:
50KN
Type:
50KN Single Capstan Diesel Cable Pulling Winch
Usage:
Cable Pulling
Engine Power:
9HP
Weight:
180kg
Size:
1200×600×500
Transmission:
Shaft Driven
50KN Single Capstan Diesel Cable Winch 9HP Engine Power With 186F Diesel Engine

50KN Single Capstan Diesel Cable Pulling Winch With 186F diesel Engine



Application

50KN Single Capstan Diesel Cable Pulling Winch With 186F diesel Engine is used for tower erection, stringing in electric power line construction.



Technical Data

No. Model Specification Gear Line Pull Pulling Speed
KN m/min
1 JJM5B Overall Size:1200×600×500mm I 50 5
Weight:180kg II 30 9
Transmission:Shaft Driven III 15 14
Engine:Air Cooled Diesel Engine 9HP IV 9 24



GENERAL SAFETY RULES

WARNING:Read and understand all the instructions.Failure to follow all instructions listed below may result in electric shock,fire or serious injury.

WARNING:The warnings,cautions and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could accur.It must be understood by the operator that common sense and caution are factors which cannnot be built into this product,but must be supplied by the operator.



WINCH USE & SAFETY
1. WARNINGNever overloaded.
2. Always keep the oil in the gearbox up to 0.8L.
3. There are spring and steel ball in the shifting fork to prevent jumping gears.Always check if the spring and steel balls are in the right position.
4. Always check the wear pattern of brake pad.
5. Never change the anchor position randomly.
6. Always keep the guard sheet lock core grinder.Never use it when the guard sheet is off.
7. Gearbox is made of aluminum alloy,never screw too tight.
8. If there is anything drop in the gearbox,always stop the working machine first.Otherwise it may cause damage to the wheel gear and box.
9. Always check if there is anywhere loosens after long distance transportation.10. Follow the instructions,fill right oil before operating.
