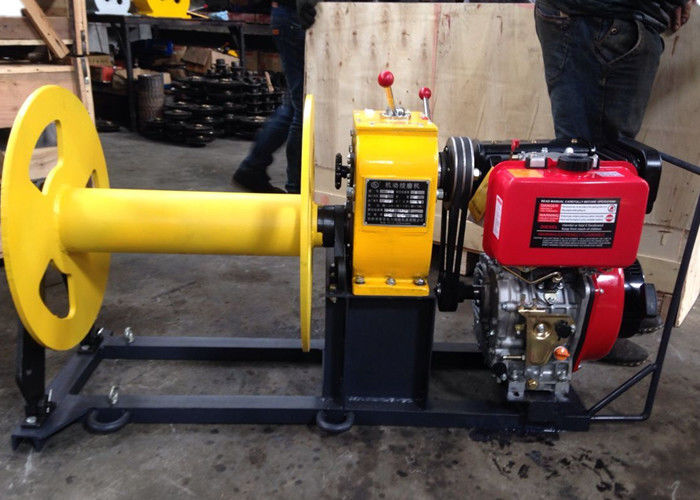

Cable Pulling Winch / Diesel Cable Winch For Cable Pulling During Tower Erection

3 Ton Diesel Engine Winch With 200 Wire Rope for Cable Pulling During Tower Erection

Application

It is used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.

Features

1. small size & compact structure. The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.

2. light weight. For example, the weight of 3 ton gasoline engine powered winch is 88 kgs. Equipped with diesel engine or motor, the winch is 108 kg. Equipped with imported gasoline engine, the winch is only 82 kg, which is very convenient transported. They are especially suitable for line construction in water area and mountain. String machine equipped with a small capstan, can also be used for a vertical rod, wire. One machine with two function in the wildfield helps to reduce crop losses.

3. high efficiency. It reduces the labor intensity, improves working efficiency with less operators and convenient field command.

4. safe and reliable. The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.

5. widely used. According to customers’ response and field investigation, this machine has wide usage, such as rod up, a vertical rod, the pull rod, line release, line reel, the bridge plate traction, lifting and other purposes.

Diesel Engine 188F Air-Cooled

1. Type:Single-cylinder, vertical, air-cooled, four-stroke diesel engine
2. Bore X Stroke (mm):88x75
3. Displacement (ml):456
4. Engine speed (rpm):3000/3600
5. Compression ratio:19: 1
6. Rated power (kW):7 / 3000,8 / 3600
7. Rotation direction (face flywheel view):Clockwise
8. Fuel (recommended):No. 0 or No. -10 diesel
9. Fuel tank capacity (L):5.5
10. Fuel consumption (g / kW.h):3000: 273,3600: 279
11. Oil Capacity (L):1.65
12. Starting method:electric start
13. Dimensions (length X width X height) (mm):500x475x555
14. Weight (kg):54


Technical Data

Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
