Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: SJM5Q
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: standard export wooden case
Delivery Time: 7 days after payment
Supply Ability: 500 set/sets per month
Motor: |
Water Cooled Diesel Engine |
Capacity: |
50KN |
Type: |
Diesel Cable Winch |
Bottom Diameter Of Groove(mm): |
15 |
Engine Power: |
6.3KW |
Size: |
1200×600×500 |
Capstan: |
Double |
Motor: |
Water Cooled Diesel Engine |
Capacity: |
50KN |
Type: |
Diesel Cable Winch |
Bottom Diameter Of Groove(mm): |
15 |
Engine Power: |
6.3KW |
Size: |
1200×600×500 |
Capstan: |
Double |

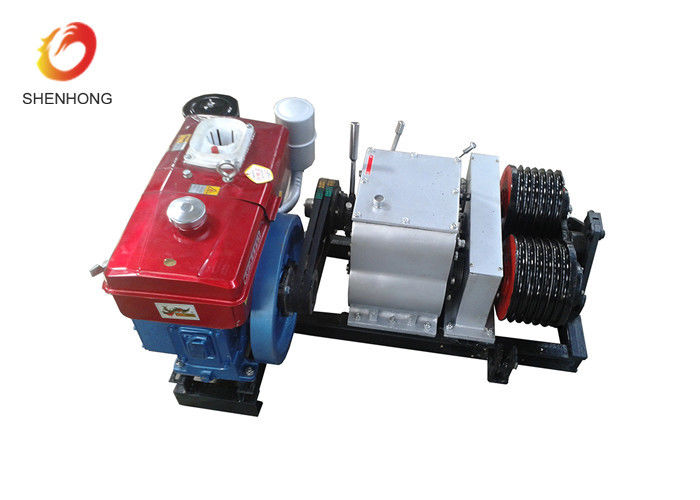

5T Double Capstan Diesel Cable Pulling Winch Machine Puller Hoist
Quick details
1. Transimission line stringing tools
2. Dual-bull wheel powered winch
3. Groove number 7 5T double diesel power cable pulling winch machine puller hoist
4. Pull force 50kn 5T double diesel power cable pulling winch machine puller hoist
5. weight: 300kg 5T double diesel power cable pulling winch machine puller hoist
Application
Extensively applied to an under construction set of electric power, post and tele wire ways to tower group sets up the pole.Apply to use in the wild non-transformer station, it will be convenient and agility.
Uses
apply to hoisting mechanical equipments and erecting pole pylon . hauling and string conductors in post telephone. telegraph and electric power lines .
Feature
the whole machine is mounted on a framework with wheel hub for easy transportation.
Data sheet
| Model | JJM-5SQ/JJM-5SC | |||||
| Engine | HODNA GX390/186F Diesel Engine | |||||
| Power | 13HP,3600rpm/6.3KW,3600rpm | |||||
| Suitable Wire Rope(mm) | 15 | |||||
| Bottom diameter of Groove(mm) | 240 | |||||
| No. Of Groove | 6 | |||||
| Gear | Forward | Reverse | ||||
| Slow I | Slow II | Fast I | Fast II | Slow | Fast | |
| Pull Force(KN) | 50 | 30 | 13 | 10 | No lifting | No lifting |
| Speed(m/min) | 6 | 10 | 23 | 30 | 5 | 17 |
| Weight(KG) | 280/300 | |||||
| Dimension(mm) | 1330×800×600 | |||||
