Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Shenhong
Certification: ISO
Model Number: 280
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: US $1600-4000 / Set
Packaging Details: standard export wooden case
Delivery Time: 15 days after the deposit
Supply Ability: 500 Set/Sets per Month
Power Source: |
Diesel Engine |
Application: |
Power Construction |
Usage: |
Hositing;pulling;lifting |
Capacity(KN): |
40 |
Weight(kg): |
1280 |
Power(KW/rpm): |
20.6/2200 |
Dimensions(mm): |
2260*1360*1310 |
Warranty: |
1 Year |
Bullwheel Bottom Of Groove Diameter(mm): |
320 |
Groove Number: |
6 |
Power Source: |
Diesel Engine |
Application: |
Power Construction |
Usage: |
Hositing;pulling;lifting |
Capacity(KN): |
40 |
Weight(kg): |
1280 |
Power(KW/rpm): |
20.6/2200 |
Dimensions(mm): |
2260*1360*1310 |
Warranty: |
1 Year |
Bullwheel Bottom Of Groove Diameter(mm): |
320 |
Groove Number: |
6 |

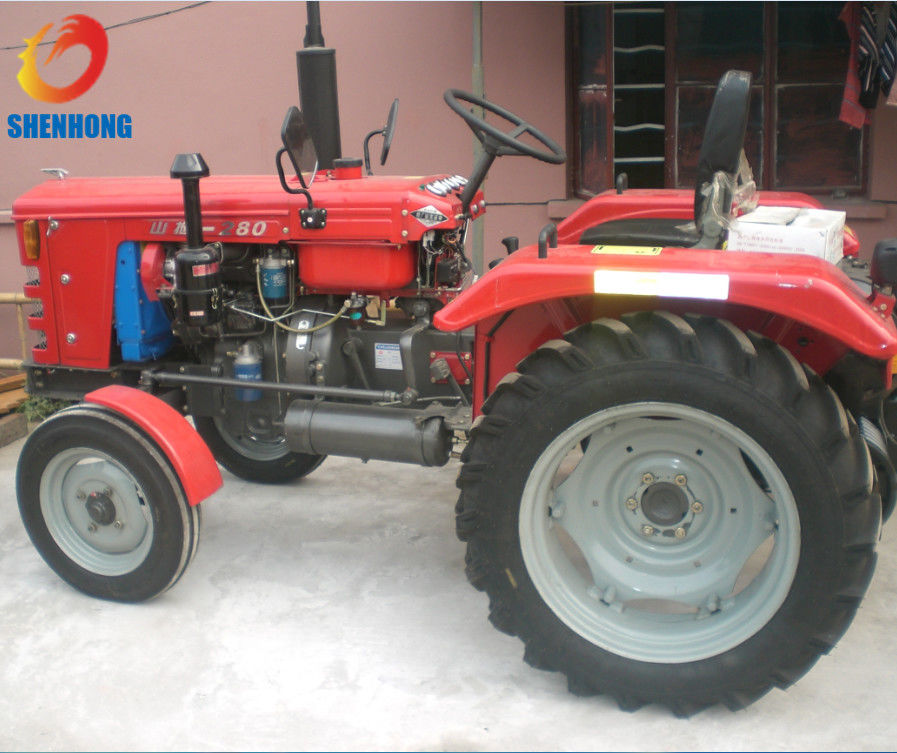

Model 280 Tractor Puller For Pulling in Power Construction
Characteristic:
1, maintain the original driving function. (separate grinding and running separately)
Main uses:
1, the power line construction in the retractable wire.
2, the traction of the whole tower erection, also lifting heavy objects.
3, rear can hang trailer transport tools.
Essential technical parameters
Power(KW/rpm):20.6/2200
Bullwheel bottom of grove diameter(mm):Φ320
Groove number:6
Maximum suitable rope diameter(mm):Φ14
Maximum running speed(m/min):59
Dimensions(mm):2660×1360×1310
Weight(kg):1280
| Gear Location | Ⅰ | Ⅱ | Ⅲ | Reverse |
| Line Pull(KN) | 40 | 30 | 20 | |
| Speed(m/min) | 715 | 1275 | 2270 | 650 |
Please tell us the following information in your enquiry:
1. Engine Power ?
2. Pulling Speed(m/min) ?
3. Pulling capacity?
4. Quantity?
we'll give you a good price after confirming the above info.
Welcome to contact us by phone or e-mail, if you are interesting in our products.
