Application: |
Construction, Crane |
Type: |
Hexogan |
Diameter: |
11-24mm |
Single Bundle Diameter: |
2.5-5mm |
Breaking Force: |
80.8-320.82KN |
Production Length: |
800-1000m |
Application: |
Construction, Crane |
Type: |
Hexogan |
Diameter: |
11-24mm |
Single Bundle Diameter: |
2.5-5mm |
Breaking Force: |
80.8-320.82KN |
Production Length: |
800-1000m |

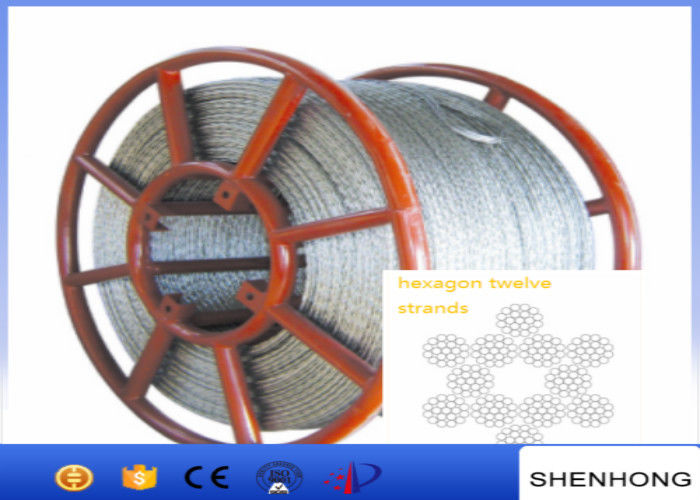

Hexagon 12 Strands Anti Twist Wire Rope Steel Wire Rope 11Mm - 24Mm Diameter
Application
It is applied to mechanical pulling and tensioning release conductors.
Anti-twisting braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.
Technical data of Hexagon 12 Strands Anti-twisting braided steel wire rope 11-24mm diameter
We adopt high quality steel rope to braide anti-twisting steel rope. It is used for pulling the conductor in the overhead transmission line.
| Order number | Structure | Diameter(mm) | Single bundle diameter(mm) | Breaking force(KN) | Production length(m) |
| 10773 | Hexagon twelve strands | 11 | 2.5 | 80.8 | 1000 |
| 10774 | 13 | 3.0 | 115.4 | ||
| 10775 | 15 | 3.5 | 157.5 | ||
| 10776 | 18 | 4.0 | 205.71 | 800 | |
| 10777 | 20 | 4.5 | 260.34 | ||
| 10778 | 24 | 5.0 | 320.82 |
