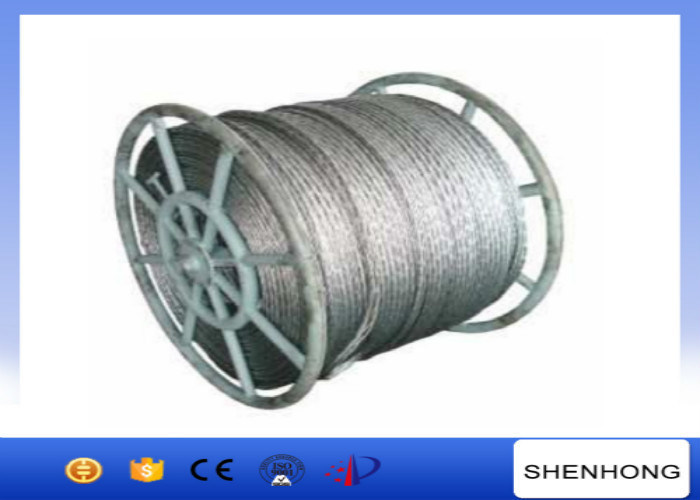

18 Strands Anti Twist Wire Rope / Galvanized Steel Wire Rope 252kN 20mm Diameter

I'm Online Chat Now
China SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD certification
China SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD certification
The Tools for underground cable pulling project works very well.I am going to introduce to other companies in local.

—— Mr. Ara Minasian

I would like to tell you that I have already begun to distribute the catalog on the Vietnam companies to transfer electricity and all the companies

—— Hung Do Bui

We will try very hard to build the market for your products in Kenya.

—— Mr. John Gachagua

18 Strands Anti Twist Wire Rope / Galvanized Steel Wire Rope 252kN 20mm Diameter

18 Strands Anti Twist Wire Rope / Galvanized Steel Wire Rope 252kN 20mm Diameter
18 Strands Anti Twist Wire Rope / Galvanized Steel Wire Rope 252kN 20mm Diameter 18 Strands Anti Twist Wire Rope / Galvanized Steel Wire Rope 252kN 20mm Diameter

Large Image :  18 Strands Anti Twist Wire Rope / Galvanized Steel Wire Rope 252kN 20mm Diameter Get Best Price

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: SHENHONG
Certification: ISO
Model Number: YL18-12x19
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: USD2-3/m
Packaging Details: with spool
Delivery Time: 15 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000M per day
Detailed Product Description
Name: Anti Twist Wire Rope Structure: 12 Strands 6 Squares
Standard Length (m): 1000 Diameter: 20mm
Feature: High Strength, Good Flexibility, Corrosion Rust-proof Breaking Load: 250KN
High Light:

galvanized steel wire rope

,

non rotating wire rope

18 Strands Anti Twist Wire Rope / Galvanized Steel Wire Rope 252kN 20mm Diameter​





Quick details

1. Transmission Line Stringing Accessories

2. Anti twist Galvanized Steel Wire Rope

3. Length: 1000m

4. Reel diameter: 1400mm

5. Normal Diameter: 20mm

6. Breakage load: 252kN

7. Size available: 9~30mm

8. 6 Squares 18 Strands

9. Length: 1000m

10. Reel diameter: 1400mm



Application
Anti twist braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.



Data Sheet

Item no. Normal Diameter (mm) Structure Breakage tension(kN) Standard Length (m)

Diameter of spool

(mm)

Total weight

(kgs)

YL9-12x19W 9 12 Strands 55 1000 850 294
YL10-12x19W 10 12 Strands 55 1000 850
YL11-12x19W 11 12 Strands 80 1000 1000 454
YL13-12x19W 13 12 Strands 120 1000 1100 642
YL16-12x19W 16 12 Strands 158 1000 1250 886
YL18-12x19W 18 12 Strands 210 1000 1400 1154
YL20-12x29Fi 20 12 Strands 250 1000 1400 1394
YL22-12X29Fi 22 12 Strands 320 1000 1400 1258
YL24-12x29Fi 24 12 Strands 360 800 1440 1474
YL28-12x29Fi 28 12 Strands 480 500 1600
YL30-12x29Fi 30 12 Strands 540 500 1600
YL20-18x19W 20 18 Strands 300 1000 1440 1368
YL22-18X29Fi 22 18 Strands 389 800 1440
YL24-18x29Fi 24 18 Strands 440 800 1440
YL28-18x29Fi 28 18 Strands 580 500 1600 1655
YL30-18x29Fi 30 18 Strands 658 500 1600 1900

























































Structure: 20mm 252kN 18 Strands Anti twist Galvanized Steel Wire Rope Transmission Line Stringing

18 Strands Anti twist Galvanized Steel Wire Rope for Transmission Line Stringing 252kN 20mm Diameter
