Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: JJM5B
Payment & Shipping Terms
Minimum Order Quantity: 2 sets
Price: negotiation
Packaging Details: standard export wooden case
Delivery Time: 7 days after payment
Supply Ability: 500 set/sets per month
Motor: |
Water Cooled Diesel Engine |
Capacity: |
50KN |
Type: |
Diesel Cable Winch |
Usage: |
Cable Pulling |
Engine Power: |
9HP |
Weight: |
180kg |
Size: |
1200×600×500 |
Transmission: |
Belt Driven Tranmission |
Motor: |
Water Cooled Diesel Engine |
Capacity: |
50KN |
Type: |
Diesel Cable Winch |
Usage: |
Cable Pulling |
Engine Power: |
9HP |
Weight: |
180kg |
Size: |
1200×600×500 |
Transmission: |
Belt Driven Tranmission |

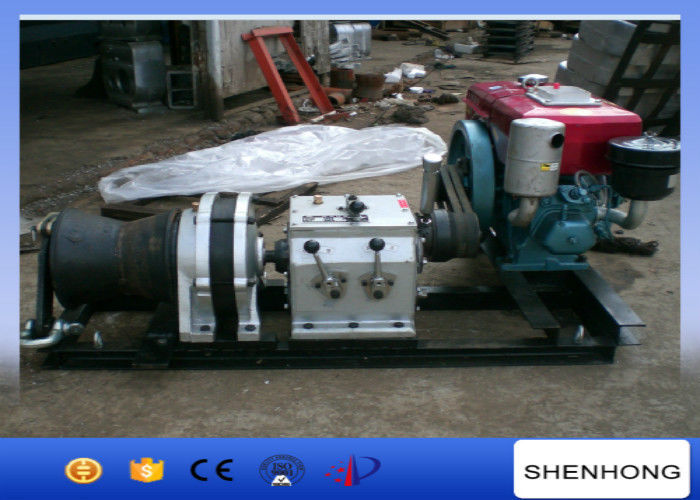

High efficiency Water Cooled Diesel Cable Winch Small Volume 4M / Min Gears
Application:
Powered winches are the construction tools of erecting electric circuits of high pressure electric transmission in the sky and laying electrical cables underground. They can complete the tasks of heavy-lifting and dragging such as erecting the wire. Testified by the experiments and practical uses, they have reasonable structure, small volume, light weight, strong power, nimble operation and convient transporting. Based on so many advantages, this Powered winch is popular with the electric workers.
Quick Detail:
1. Pulling force:5 tons;
2. High efficiency;
3. More gears(4m/min ~24m/min) for option;
Feature:
4 gears;
Fast speed;
Compact makeup;
Small volume;
Light in weight;
Safer;
High work efficiency.
Technical Data
| Winch JJ-5-B | ||||||
| Model | Gear |
Pulling Force (Ton) |
Pulling Speed (m/min) |
Power (KW) |
Dimensions (mm) |
Weight (Kg) |
|
JJM-5-B Gasoline Engine |
Fast | 0.9 | 24 | 6.6 | 1100×500×600 | 160 |
| Mid | 1.5 | 13 | ||||
| Mid | 2.5 | 8 | ||||
| Slow | 5.0 | 4 | ||||
|
JJM-5-B 178F/186F Diesel Engine |
Fast | 0.9 | 24 | 5.7 | 1100×525×600 | 170 |
| Mid | 1.5 | 13 | ||||
| Mid | 2.5 | 8 | ||||
| Slow | 5.0 | 4 | ||||
Package
Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
