50KN Diesel Wire Rope Winch / Belt Driven 400MM Diameter Cable Drum Winch

Product Details

Place of Origin: Jiangsu, China

Brand Name: SHENHONG

Certification: ISO

Model Number: JJM5C

Payment & Shipping Terms

Minimum Order Quantity: 2 sets

Price: negotiation

Packaging Details: standard export wooden case

Delivery Time: 7 days after payment

Supply Ability: 500 set/sets per month

Get Best Price
Highlight:

cable pulling winch

,

wire rope winch

Motor:
Water Cooled Diesel Engine
Capacity:
50KN
Type:
Diesel Wire Rope Winch
Engine Power:
6HP
Weight:
180kg
Size:
1200×600×500
Transmission:
Belt Driven
Cable Drum Diameter:
400mm
Motor:
Water Cooled Diesel Engine
Capacity:
50KN
Type:
Diesel Wire Rope Winch
Engine Power:
6HP
Weight:
180kg
Size:
1200×600×500
Transmission:
Belt Driven
Cable Drum Diameter:
400mm

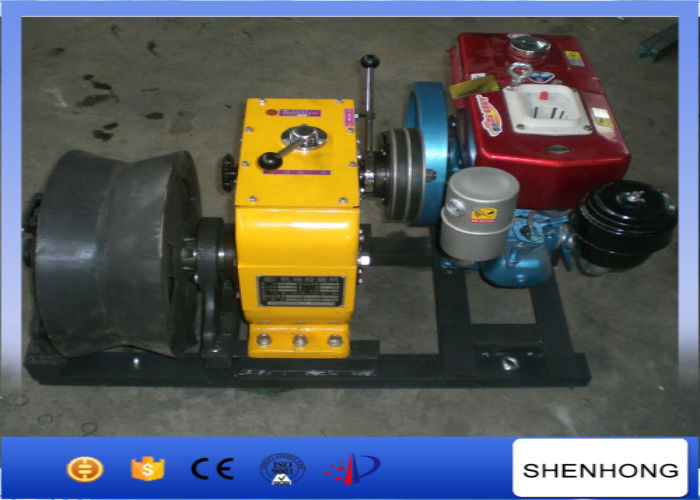

50KN Diesel Wire Rope Winch / Belt Driven 400MM Diameter Cable Drum Winch

50KN Diesel Wire Rope Winch / Belt Driven 400MM Diameter Cable Drum Winch​




1. INTENDED USE

Cable Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.



2. Features

Small size & compact structure. The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.

Light weight. For example, the weight of 3 ton gasoline engine powered winch is 88 kgs. Equipped with diesel engine or motor, the winch is 108 kg. Equipped with imported gasoline engine, the winch is only 82 kg, which is very convenient transported. They are especially suitable for line construction in water area and mountain. String machine equipped with a small capstan, can also be used for a vertical rod, wire. One machine with two function in the wild field helps to reduce crop losses.

High efficiency. It reduces the labor intensity, improves working efficiency with less operators and convenient field command.

Safe and reliable. The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.

Widely used. According to customers’ response and field investigation, this machine has wide usage, such as rod up, a vertical rod, the pull rod, line release, line reel, the bridge plate traction, lifting and other purposes.



3. Application

Powered winches are the construction tools of erecting electric circuits of high pressure electric transmission in the sky and laying electrical cables underground. They can complete the tasks of heavy-lifting and dragging such as erecting the wire. Testified by the experiments and practical uses, they have reasonable structure, small volume, light weight, strong power, nimble operation and convient transporting. Based on so many advantages, this Powered winch is popular with the electric workers.



4. Brake:

there are two kinds of brake installment in the machine-the auto clamp-brake and the clutch-drived chain brake.Both of them can play the brake function in clockwise and reverse-clockwise directions.



5. Hand installment:

if the prime motor doesn’t work well during the working process, you can use the hand installment to help you complete the job.



6. Lubrication

using the gasoline to lubricate the gearbox and using the butter to lubricate the outside bearing.



7. Technical Data

Model Type Engine Power Gear Pulling Speed(m/min) Line Pull(Ton)
JJM5C

Water Cooled Diesel Engine 6HP

Slow 4.5 5
Quick 8.5 3
Reverse 4
