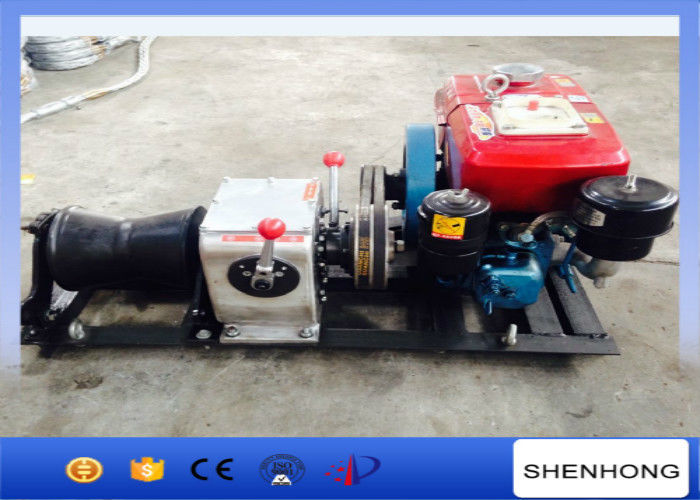

Cylindrical Shape Diesel Cable Winch Steel 1 Ton For Transmission Line Erection

Cylindrical Shape Diesel Cable Winch Steel 1 Ton For Transmission Line Erection

Winch Introduction

A winch is a mechanical device that is used to pull in (wind up) or let out (wind out) or otherwise adjust the "tension" of a rope or wire rope (also called "cable" or "wire cable"). In its simplest form it consists of a spool and attached crank. In larger forms, winches stand at the heart of machines as diverse as tow trucks, steam shovels and elevators. The spool can also be called the winch drum. More elaborate designs have gear assemblies and can be powered by electric, hydraulic, pneumatic or internal combustion drives. Some may include a solenoid brake and/or a mechanical brake or ratchet and pawl device that prevents it from unwinding unless the pawl is retracted.

Application

1. It is used for tower erection,pole setting,stringing wire in electrical power line construction.

2. Winch can be modified as per requirement, such as changing curve capstan into straight even

3. cylindrical shape and coming with steel rope.

Features

Small size & compact structure. The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.Light weight. For example, the weight of 5 ton gasoline engine powered winch is 88 kgs. Equipped with diesel engine or motor, the winch is 160 kg. Equipped with imported gasoline engine, the winch is only 82 kg, which is very convenient transported. They are especially suitable for line construction in water area and mountain. String machine equipped with a small capstan, can also be used for a vertical rod, wire. One machine with two function in the wildfield helps to reduce crop losses.High efficiency. It reduces the labor intensity, improves working efficiency with less operators and convenient field command.Safe and reliable. The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.Widely used. According to customers’ response and field investigation, this machine has wide usage, such as rod up, a vertical rod, the pull rod, line release, line reel, the bridge plate traction, lifting and other purposes.

Technical Data
