Line Construction Honda Gas Powered Winch 9HP Easy To Operate

Line Construction Honda Gas Powered Winch 9HP Easy To Operate
Line Construction Honda Gas Powered Winch 9HP Easy To Operate Line Construction Honda Gas Powered Winch 9HP Easy To Operate Line Construction Honda Gas Powered Winch 9HP Easy To Operate

Large Image :  Line Construction Honda Gas Powered Winch 9HP Easy To Operate Get Best Price

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: shenhong
Certification: BV,ISO,CE
Model Number: JJM5Q
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1000-2500/set
Packaging Details: It is packed with standard export wooden case.
Delivery Time: ten days after the deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Month
Detailed Product Description
Capacity: 50KN Usage: Line Construction
Weight: 130kg Dimension: 1000*550*500mm
Rated Power: 9HP Power Source: Gasoline/petrol Engine
Warranty: One Year Package: Plywood Case
High Light:

gasoline powered winch

,

gas powered winches

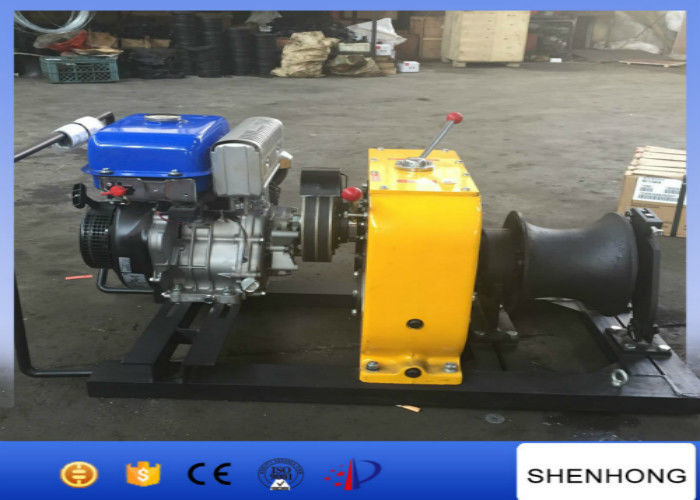

Line Construction Honda Gas Powered Winch 9HP Easy To Operate



Application

It is uesd for tower erection, pole setting, stringing wire in electrical power line construction. It is suitable for field, mountain construction. It is flexible due to small and light.

Motor winch is composed of roller drum , gearbox, gasoline engine and base frame. The winch groove is used to directly connect the wire rope to the traction slot, with gasoline engine, motor as power, Box speed to hit the required speed, the machine is located in the steel structure.



Feature

Light weight, easy to operate, flexible and small. There is mechanical brake system composed in the Gear Box. The brake can hold the steel wire rope when there is emergency.



Technical Data of 5Ton YAMAHA gas engine cable powered pulling winch for line construction

Model Engine Power Gear Pull force(KN) Speed(m/min) Weight(kg)
JJM5Q YAMAHA engine 9HP Slow 50 5 130
Fast 30 11
Reverse No lifting 3.2





Product description

Line Construction Honda Gas Powered Winch 9HP Easy To Operate 0Line Construction Honda Gas Powered Winch 9HP Easy To Operate 1





Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.



Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.



Packaging & Delivery

Packaging Details: It is packed with standard export wooden case

Delivery Detail: ten days after the deposit
