Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: ZJ-QYS-50/8
Payment & Shipping Terms
Minimum Order Quantity: 1 sets
Price: USD20000-USD30000/set
Packaging Details: standard export wooden case
Delivery Time: 15 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 set/sets per month
Rated Traction: |
50KN |
Maximum Traction: |
63KN |
Rated Traction Speed: |
9km/h |
Maximum Traction Speed: |
18km/h |
Corresponding Traction Force: |
25KN |
Maximum Applicable Diameter Of Wire: |
16.5mm |
Rated Traction: |
50KN |
Maximum Traction: |
63KN |
Rated Traction Speed: |
9km/h |
Maximum Traction Speed: |
18km/h |
Corresponding Traction Force: |
25KN |
Maximum Applicable Diameter Of Wire: |
16.5mm |

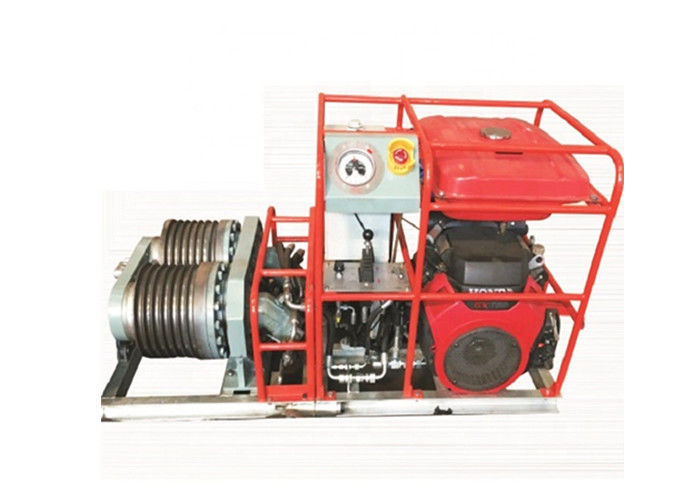

50KN Double Capstan Cable Pulling Machine For Hydraulic Cable Pulling Winch
Application:
Hydraulic winch is a construction tool for erecting high voltage transmission lines and laying underground cables, which can be used for lifted and tracted smoothly and conveniently under various complex conditions. It has the advantages of small volume, flexible operation and convenient handling.
Features:
1. With a tail rope clamping device (Hydraulic tail rope retractors can be added according to customers’ requirements );
2. Stepless adjustment of positive and negative speeds to meet users'needs for different speeds;
3. Specific traction presetting function and overload protection, when the traction exceeds the rated traction, the machine will automatically stop working;
4. Hydraulic oil radiator is equipped with temperature control switch, which can effectively prevent operators from forgetting to turn on the fan, resulting in excessive temperature of hydraulic oil affecting the performance of the machine.
5. Planetary reducer and parking brake are used to install balancing valves on the oil road, which can effectively prevent running and wear, and make the lifting-stopping-dropping of heavy objects more stable.
6. Two or more hoisting devices can be centralized controlled by moving and parallel control box according to customers' needs.
Data Sheet
| Item | Product model | ZJ-QYS-50/8 | |
| Performance parameters | Rated traction | 50kN | |
| Maximum traction | 63kN | ||
| Rated traction speed | 9km/h | ||
| Maximum traction speed | 18km/h | ||
| Corresponding traction force | 25kN | ||
| Structural parameters | Traction drum | Bottom diameter (minimum) | 260mm |
| Number of rope grooves | 7 | ||
| Maximum applicable diameter of wire | 16.5mm | ||
| Power part | Dimensions | 800×700×800mm | |
| Weight | 200kg | ||
| Winding part | Dimensions | 600×700×400mm | |
| Weight | 280kg | ||
| Main configurations | Engine | HONDA | |
| Electrical system | 12V | ||
| Hydraulic pump | Imported from Italy | ||
| Hydraulic motor | Imported from France | ||
| Reducer | Imported from Italy | ||
| Hydraulic instrument | Imported from Germany | ||
| Main hydraulic valves | Imported from USA | ||
