Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: ZJ-QXM-50/10
Payment & Shipping Terms
Minimum Order Quantity: 1 sets
Price: USD1200-USD1500/set
Packaging Details: standard export wooden case
Delivery Time: 7 days after payment
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500 set/sets per month
Dimension: |
1100×800×600mm |
Weight: |
185kg |
Power Source: |
HONDA(GX390) |
Drum Groove Bottom Diameter: |
160mm |
Maximum Applicable Diameter Of Wire Rope: |
16mm |
Warranty: |
1 Year |
Dimension: |
1100×800×600mm |
Weight: |
185kg |
Power Source: |
HONDA(GX390) |
Drum Groove Bottom Diameter: |
160mm |
Maximum Applicable Diameter Of Wire Rope: |
16mm |
Warranty: |
1 Year |

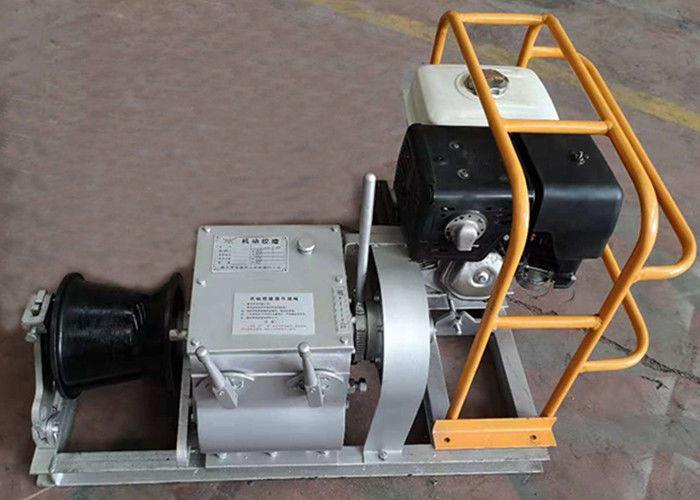

50kN Cable Puller Winch Single Drum Capstan Cable Pulling Winch for Underground Cable Laying
Application:
Single drum winch is a construction tool for erecting high voltage transmission lines and laying underground cables, which can be used for lifted and tracted smoothly and conveniently under various complex conditions. It has the advantages of small volume, flexible operation and convenient handling.
Features:
1. The power and gearbox are driven by belt or shaft connection and equipped with transmission clutch; the gearbox is driven by two gear shifts.
2. There are two kinds of braking devices: automatic clamping brake and clutch rotating interlocking brake, which play a braking role in both positive and negative directions.
3. If the prime mover fails during the working process of the machine and the suspended object is suspended in the air, the hand-rocking device can be moved and the suspended object can be put back to the ground.
4. The grinding core adopts V-shape design, which effectively prevents the wire rope from running out of the grinding core when the machine is running.
5. Power source can customize diesel engine or motor according to customer's demand.
Usages:
The cable pulling winch can complete the tasks of heavy-lifting and dragging such as erecting the wire. Testified by the experiments and practical uses, they have reasonable structure, small volume, light weight, strong power, nimble operation and convenient transporting. Based on so many advantages, this powered winch is popular with the electric workers.
Data sheet
| Item | Product model | ZJ-QXM-50/10 | |
| Performance parameters | I gear | Tractive force | 50kN |
| Tractive speed | 5m/min | ||
| Ⅱ gear | Tractive force | 25kN | |
| Tractive speed | 10m/min | ||
| Structural parameters | Drum groove bottom diameter | 160mm | |
| Maximum applicable diameter of wire rope | 16mm | ||
| Dimension | 1100×800×600mm | ||
| Weight | 185kg | ||
| Power source | Model | HONDA(GX390) | |
| Speed | 3600r/min | ||
