Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: SHLZ
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Supply Ability: 1000pcs per month
Material: |
Nylon / Aluminum |
Type: |
Two Roller |
Application: |
Large Power Construction |
Weight(kg): |
8.0-9.9 |
Rated Load(KN): |
10 |
Usage: |
Push Pull Cables |
Material: |
Nylon / Aluminum |
Type: |
Two Roller |
Application: |
Large Power Construction |
Weight(kg): |
8.0-9.9 |
Rated Load(KN): |
10 |
Usage: |
Push Pull Cables |

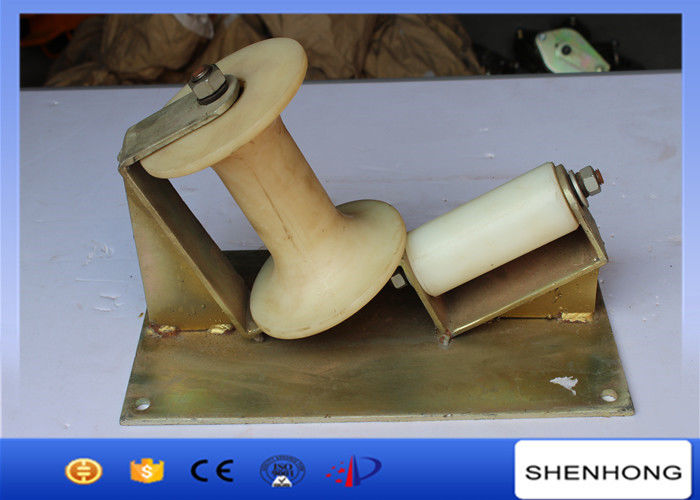

ISO Approval Two Roller Cable Pulling Roller Guide Push Pull Cables
Cable Pulley Introduction
Cable laying rollers are generally available ex stock. we owns all its own cable laying roller moulds which ensures consistent quality and quick turnaround times. All roller frames can be modified to suit operations for pulling cable in buildings over walls etc.
Uses
The uses of a cable pulley can vary, though the system is usually designed to lift heavy weights or move heavy objects over a length. Woven cables are much stronger than belts or ropes in most cases, so they are better prepared to handle the weight of larger objects. It is not uncommon to find a cable pulley in an industrial setting such as a warehouse or factory, or any other setting that requires the regular movement of extremely heavy objects. The size of the cable and the pulley will dictate how much weight the system can handle, as well as the number of pulleys in the system.
Features
Corner Cable rollers, the cable rollers are used in protecting the cable during cable-laying at the tunnel construction. So the cable can be well enough to laying.
Technical Data
| Model | Rated load(KN) | Structure | Weight(kg) |
| SHLZ1 | 10 | One way | 9.4 |
| SHLZ1N | 10 | One way | 8.0 |
| SHLZ1T | 10 | Both way | 9.9 |
| SHLZ1TN | 10 | Both way | 8.0 |
Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
