Product Details
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: QHS2-5
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: get latest price.
Packaging Details: Carton
Delivery Time: 10-15 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets/month
Working Load: |
50KN |
Wheel Material: |
Steel |
Application: |
Hoisting,pulling |
Diameter Of Rope (mm): |
≤Φ11 |
Weight (kg): |
11 |
Usage: |
Power Construction |
Working Load: |
50KN |
Wheel Material: |
Steel |
Application: |
Hoisting,pulling |
Diameter Of Rope (mm): |
≤Φ11 |
Weight (kg): |
11 |
Usage: |
Power Construction |

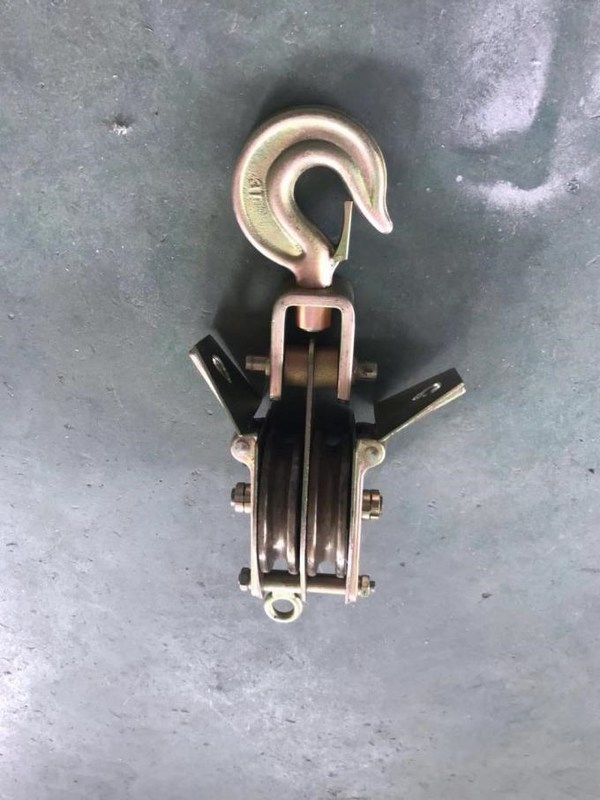

BOTH SIDE OPENING DUAL-SHEAVE CABLE STRINGING BLOCK STEEL HOISTING TACKLE 5T
This dual sheave hoisting tackle, hook type hoisting tackle,is divided into hook style (G) and ring style (H). Therefore, our customers must clearly explain their required style in the written contract. Moreover, our product has openings in both sides, thus providing convenience for assembling and disassembling the steel wire rope.
Uses:
The block has openings in both sides, so it is convenient to assemble and disassemble the steel wire rope.
Features:Hoisting point type:hook style(G), round eye style(H)
Detailed Data
| Item Number | Model | Rated Load (kN) | Diameter of Rope (mm) | Weight (kg) | Hook Style | Ring Style |
| 11281 | QHS2-3 | 30 | ≤Φ9.3 | 6.3 | G | H |
| 11282 | QHS2-5 | 50 | ≤Φ11 | 11 | G | H |
| 11283 | QHS2-8 | 80 | ≤Φ13 | 16 | G | H |
| 11284 | QHS2-10 | 100 | ≤Φ13 | 18 | G | H |
