Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: 21339
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Max Cable Diameter(mm): |
φ150 |
Rated Load(kN): |
10 |
Dimension(mm): |
φ140x160 |
Weight(kg): |
3.5 |
Usage: |
Power Construction |
Item: |
ALUMINUM NYLON SHEAVE CONDUCTOR AERIAL CABLE ROLLER STRINGING PULLEY |
Max Cable Diameter(mm): |
φ150 |
Rated Load(kN): |
10 |
Dimension(mm): |
φ140x160 |
Weight(kg): |
3.5 |
Usage: |
Power Construction |
Item: |
ALUMINUM NYLON SHEAVE CONDUCTOR AERIAL CABLE ROLLER STRINGING PULLEY |

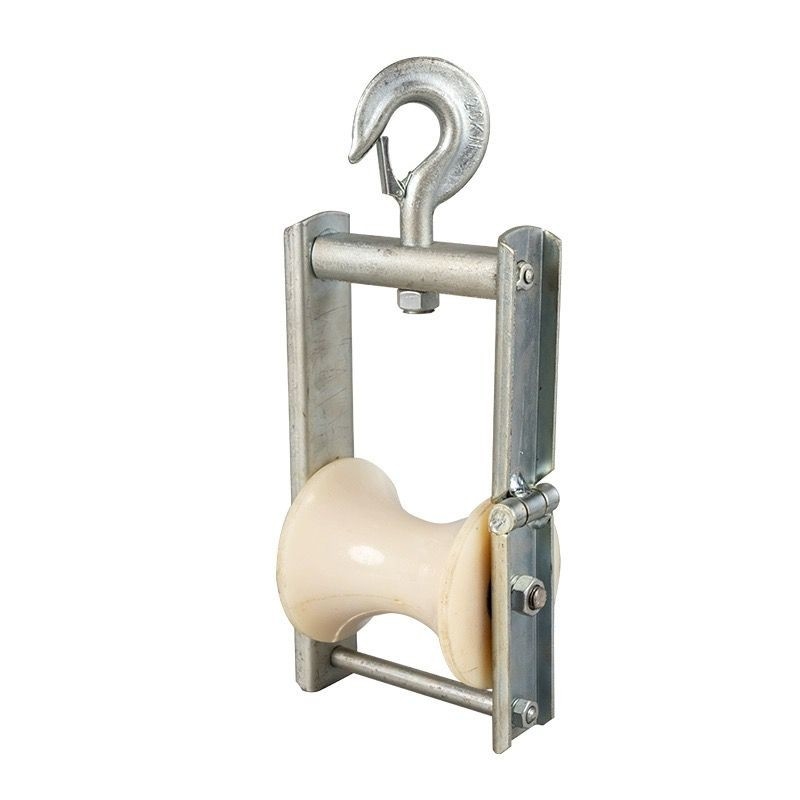

ALUMINUM NYLON SHEAVE CONDUCTOR AERIAL CABLE ROLLER STRINGING PULLEY
SHORT DESCRIPTION:
Aerial Cable Roller Stringing Pulley is used to aerial electric power, communication cable and power cable construction. The sheaves of Aerial Cable Stringing Roller are made of aluminum alloy or high strength MC nylon.
Product Introduction
Aerial Cable Roller Stringing Pulley is used to aerial electric power, communication cable and power cable construction .
10228 Suitable for ABC cable(bunch).
Other pulleys are applicable to aerial electric power,communication cable and power cable.
The sheaves of Aerial Cable Stringing Roller are made of aluminum alloy or high strength MC nylon. All the sheaves are mounted on ball bearings. The frame of pulley is made of galvanized steel. The steel wheel needs to be customized.
Aerial Cable Stringing Roller TECHNICAL PARAMETERS
|
Item number |
Rated load (kN) |
Max Applicable Cable(mm) |
Shcave Size(mm) |
Weight (kg) |
|
10228 |
5 |
Φ100 |
120*130 |
2.7 |
|
21338 |
10 |
Φ80 |
160*90 |
3.5 |
|
21339 |
10 |
Φ150 |
140*160 |
3.5 |
|
21340 |
10 |
Φ200 |
160*230 |
12.5 |
|
10228L |
10 |
Φ100 |
120*130 |
3.8 |
|
21339L |
10 |
Φ150 |
140*160 |
4.5 |
|
21340L |
10 |
Φ200 |
160*230 |
14.5 |
