Product Details
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: SHGN-2
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: get latest price
Packaging Details: Carton
Delivery Time: 10-15 days after payment
Payment Terms: L/C, T/T, Western Union
Wheel Diameter: |
φ120mm |
Wheel Width: |
58mm |
Rated Load: |
20KN |
Application: |
Stringing Project |
Wheel Material: |
Nylon |
Weight: |
3.4kg |
Wheel Diameter: |
φ120mm |
Wheel Width: |
58mm |
Rated Load: |
20KN |
Application: |
Stringing Project |
Wheel Material: |
Nylon |
Weight: |
3.4kg |

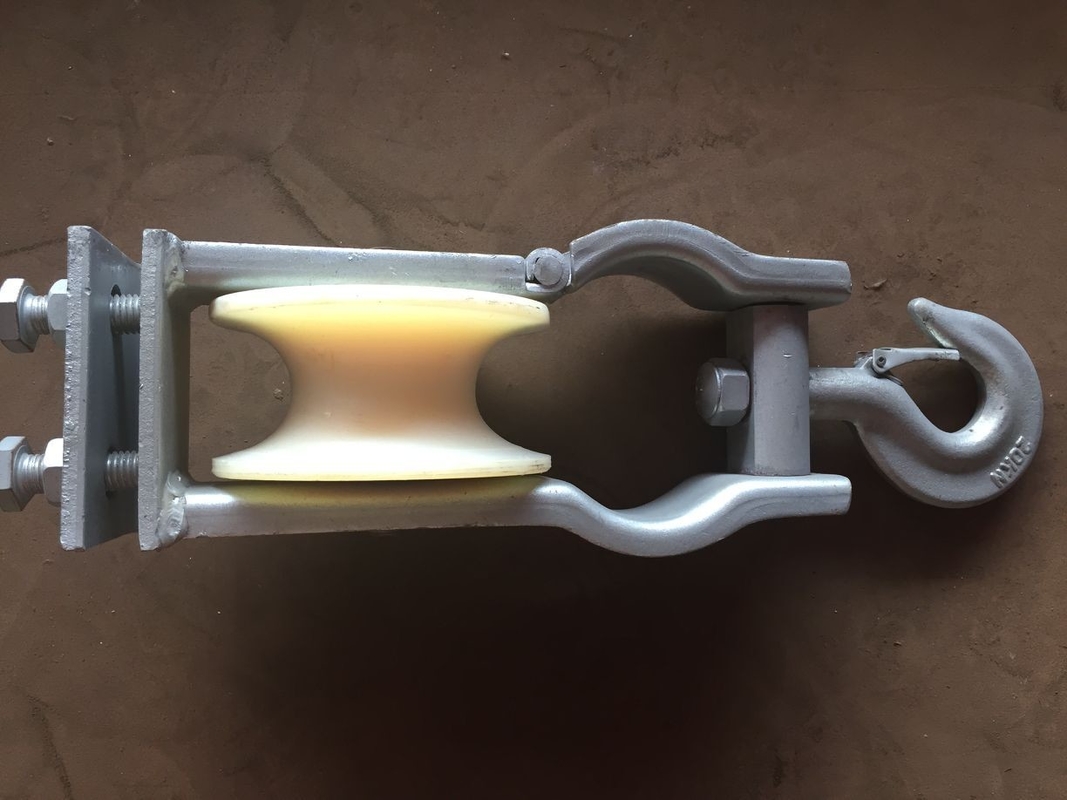

20KN HOOKED CONDUCTOR STRINGING BLOCK SITTING HANGING DUAL-USE STRINGING PULLEY
SHORT DESCRIPTION:
Hanging Dual-Use Stringing Pulleys have are used to support conductors,OPGW,ADSS, communicatio lines. The sheave of the pulley are made from higth strength nylon,or aluminum materials ,and the frame of are made of galvanized steel. Product can be used in hanging type stringing pulley or skyward stringing pulley.
Product Introduction
Hanging Dual-Use Stringing Pulley have are used to support conductors,OPGW,ADSS, communicatio lines. The sheave of the pulley are made from higth strength nylon,or aluminum materials ,and the frame of are made of galvanized steel. All kinds of pulley blocks can be manufactured according to the customers's requirements. Product can be used in hanging type stringing pulley or skyward stringing pulley.
The sheaves of stringing pulley are made of aluminum alloy or high strength MC nylon. All the sheaves are mounted on ball bearings. The frame of pulley is made of galvanized steel.
TECHNICAL PARAMETERS
| Item number | Model | Rated load (kN) | Outside diameter×width (mm) | Weight (kg) | Remark |
| 10261 | SHG-0.5 | 5 | φ80x50 | 2.1 | Aluminium sheave |
| 10263 | SHG-1 | 10 | φ160x40 | 3.2 | |
| 10264 | SHG-2 | 20 | φ120x58 | 3.6 | |
| 10271 | SHGN-0.5 | 5 | φ80x50 | 1.9 | Nylon sheave |
| 10272 | SHGN/0.5 | 5 | φ120x30 | 1.8 | |
| 10273 | SHGN-1 | 10 | φ160x40 | 2.6 | |
| 10274 | SHGN-2 | 20 | φ120x58 | 3.4 |
