Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: 508
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: export package
Delivery Time: 7-30 days after payment
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000pcs per month
Material: |
Nylon |
Surface: |
Garvanized |
Application: |
Pull Cable |
Wheel Diameter: |
508mm |
Wheel Width: |
110mm |
Product: |
Cable Pulley Block |
Material: |
Nylon |
Surface: |
Garvanized |
Application: |
Pull Cable |
Wheel Diameter: |
508mm |
Wheel Width: |
110mm |
Product: |
Cable Pulley Block |

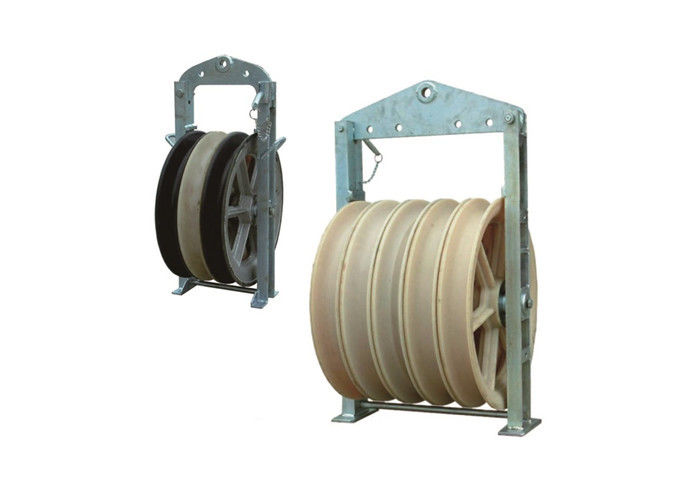

508*110 Three nylon wheels diameter bundled conductor pulley for transmission line
508 mm stringing blocks
508 mm stringing blocks are normally used for stringing medium size conductor (17-25 mm) in overhead transmission line construction. We have designed series of these stringing blocks for single conductor, 2 bundled conductor and 4 bundled conductors stringing. 1.Maximum suitable conductor ACSR400.Configuration: 2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ508×Φ408×75 (mm) 3.Sheave dimension Φ508×Φ408×100 (mm) can be customized
Technical Data
| Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) | Features |
| G1410 | SHD508 | 1 | 20 | 18 | Rubber lined aluminum sheave |
| G1411 | SHS508 | 3 | 40 | 61 |
Middle : Cast steel sheave Conductor : Rubber lined aluminum sheave |
| G1412 | SHW508 | 5 | 60 | 93 | |
| G1413 | SHDN508 | 1 | 20 | 16 | MC nylon sheave |
| G1414 | SHSLN508 | 3 | 40 | 47 |
Middle : MC nylon sheave Conductor : Rubber lined aluminum sheave |
| G1415 | SHWLN508 | 5 | 60 | 79 | |
| G1416 | SHSQN508 | 3 | 40 | 38 | MC nylon sheave |
| G1417 | SHWQN508 | 5 | 60 | 70 |
Services:
1. Our Quality Assurance
Before packaging, we should control the quality of each process to avoid defects in the manufacturing process.
2. Fast delivery time
There is sufficient stock, using advanced equipment and machinery to produce, to ensure delivery within 7-15 days.
3. Packaging
Durable wooden boxes, wooden pallets or cartons, you can ensure that the ordered items will reach your perfect state.
4. Application
It is widely used in overhead power line construction.
