Nylon Large Diameter Pilot Wire Rope Stringing Blocks

Product Details

Place of Origin: Jiangsu, China

Brand Name: SHENHONG

Certification: ISO

Model Number: 660

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: negotiation

Packaging Details: export package

Delivery Time: 7-30 days after payment

Payment Terms: Western Union, L/C, T/T

Supply Ability: 1000pcs per month

Get Best Price
Highlight:

Wire Rope Stringing Blocks

,

Large Diameter Stringing Blocks

,

Nylon Stringing Blocks

Material:
Nylon
Surface:
Garvanized
Application:
Stringing Block For Pilot
Wheel Diameter:
660mm
Wheel Width:
100mm
Weight:
30-220kg
Material:
Nylon
Surface:
Garvanized
Application:
Stringing Block For Pilot
Wheel Diameter:
660mm
Wheel Width:
100mm
Weight:
30-220kg

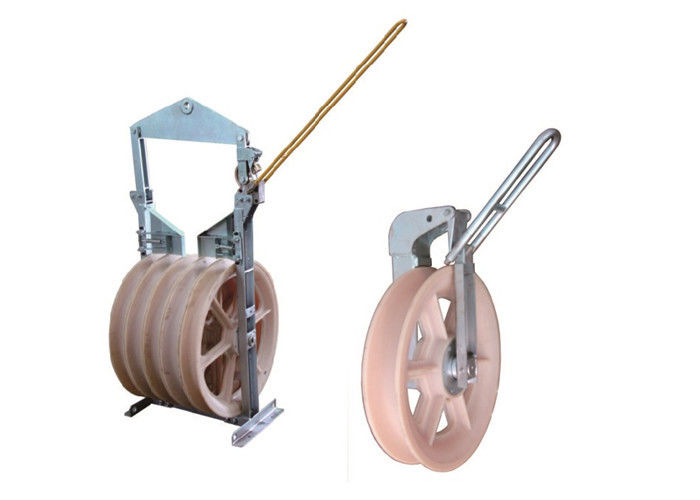

Nylon Large Diameter Pilot Wire Rope Stringing Blocks

660mm Large diameter wheels for pilot wire rope , wire helicopter stringing blocks


Helicopter Stringing Blocks

Uses:

It is suitable to string many kinds of overhead conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheaves are made of aluminum alloy or high strength nylon.



Notes:
1. 508mm, 660mm aluminum alloy sheave can be lined with rubber.
2. 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with rubber
3. Three sheaves and five sheaves helicopter stringing blocks are available for two bundle conductor and four bundle conductors stringing.



Main Specifications

Item number Model OutsideDiameter Sheave(MM) Sheaves
10321 SHDN508Z

Φ508×75

(508*100)

1
10322 SHSN508Z 3
10323 SHWN508Z 5
10324 SHDN660Z

Φ660×100

(660×110)

1
10325 SHSN660Z 3
10326 SHWN660Z 5
10326-1 SHDN822Z Φ822×110 1
10326-2 SHSN822Z 3
10326-3 SHWN822Z 5
10327 SHDN916Z Φ916X110 1
10328 SHSN916Z 3
10329 SHWN916Z 5

Nylon Large Diameter Pilot Wire Rope Stringing Blocks 0

Nylon Large Diameter Pilot Wire Rope Stringing Blocks 1

Nylon Large Diameter Pilot Wire Rope Stringing Blocks 2

Services:
1. Our Quality Assurance
Before packaging, we should control the quality of each process to avoid defects in the manufacturing process.

2. Fast delivery time
There is sufficient stock, using advanced equipment and machinery to produce, to ensure delivery within 7-15 days.

3. Packaging
Durable wooden boxes, wooden pallets or cartons, you can ensure that the ordered items will reach your perfect state.

4. Application
It is widely used in overhead power line construction.
