Product Details
Place of Origin: Jiangsu,China
Brand Name: SHENHONG
Certification: ISO
Model Number: EP-510
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: plastic box
Delivery Time: 7days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Crimping Type: |
Hexagon Crimping |
Crimping Range: |
50-400mm2 |
Crimping Force: |
13ton |
Stroke: |
38mm |
Product Size: |
635*170*72mm |
Crimping Type: |
Hexagon Crimping |
Crimping Range: |
50-400mm2 |
Crimping Force: |
13ton |
Stroke: |
38mm |
Product Size: |
635*170*72mm |

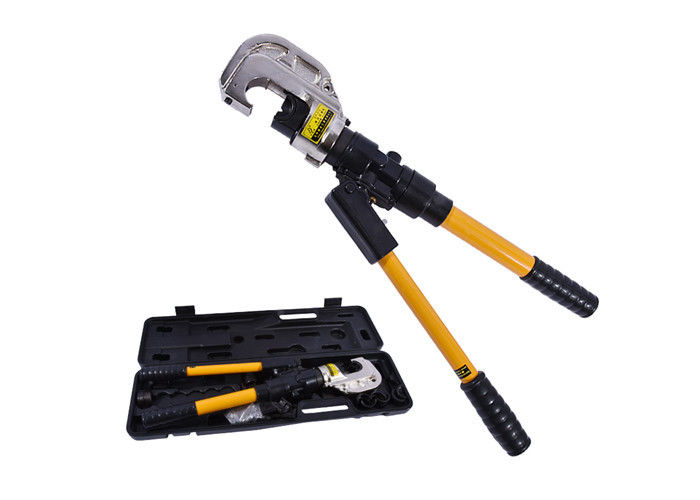

Hydraulic Crimping Tool Hydraulic Compression Tool EP-510 safety system inside
Feature:
1. Design to accommodate hexagonal, dies of hydraulic tools for applying compression fittings too copper, aluminum conductors.
2. Two stage pumping action for rapid ram advance to the connector hold position with minimum pumping action.
3. Automatic retraction when the pressure of crimper tools reaches 700kg/cm2(12TON) reached.
4. The glass fiber operation insulates the stick, the crimping tool can bear the electric voltage 20KV, keeping on the 5 minute.
5.Hydraulic tools with 180 degree rotatable head.
6. The pressure of the hydraulic tools outside the body adjusts to press the valve.
Quick Information
1. Hydraulic Tool,hydrauic crimping tool,hydraulic crimping plier ,hydraulic compression tool
2. hydraulic tool Automatic restoration when the pressure reach 700kg/cm2
3. hydraulic tool 180-degree rotatable head
4. Crimping force:13T
5. Stroke:38mm
6. Oil capacity:145cc
7. Standard dies:50.70.95.120.150.185.240.300 sq.mm
8. Hydraulic oil:K32
Technical Reference:
| Model | EP-510 |
|---|---|
| Crimping force | 130KN |
| Crimping range | Cu16-400mm² |
| Crimping Type | hexagon crimping |
| Stroke | 32mm |
| Oil capacity | 145CC |
| Weight | approx.7.2kg |
| Package | plastic case |
| Standard Accessories | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm² |
