Product Details
Place of Origin: Jiangsu,China
Brand Name: SHENHONG
Certification: CE,ISO
Model Number: BZ
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: box
Delivery Time: ten days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Piece/Pieces per Month
Application: |
Crimping |
Power: |
Electric |
Max Compression: |
60-120KN |
Stroke: |
17-42mm |
Compress Range: |
16-300mm2, 50-400mm2 |
Battery: |
18V3Ah |
Application: |
Crimping |
Power: |
Electric |
Max Compression: |
60-120KN |
Stroke: |
17-42mm |
Compress Range: |
16-300mm2, 50-400mm2 |
Battery: |
18V3Ah |

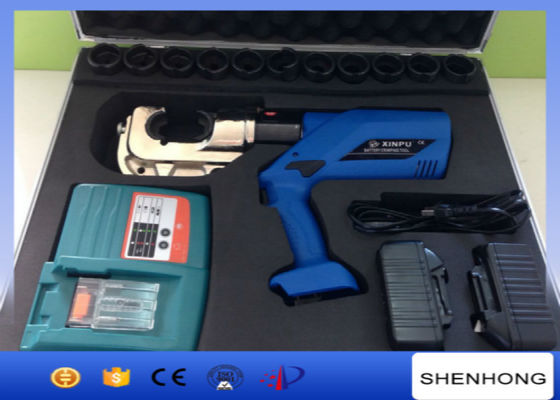

Battery Powered Hydraulic Crimping Tool, Electric Hydraulic Crimping Tool
Characteristics
Compression mould can be replaced, quick and safe operation
Press tools is suitable for DIN.AWG.JIS.
There is a safe protective equipment of "Kacha" voice when it reaches to high or low voltage.
Only one person can work.
Pump is connected to the tools, it can turn 180 degree when pressed on the head.
Technical data of Battery Powered Hydraulic Crimping Tool, Electric Hydraulic Crimping Tool
| Model | BZ-300 | BZ-400 |
| Max Compression(KN) | 60 | 120 |
| Stroke(mm) | 17 | 42 |
| Compress Range | 16-300mm² | 50-400mm² |
| Battery | 18V3Ah | 18V3Ah |
| Compression die size | 16,25,35,50,70,95,120,150,185,240,300mm² | 50,70,95,120,150,185,240,300,400mm² |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
