Product Details
Place of Origin: Jiangsu,China
Brand Name: SHENHONG
Certification: ISO
Model Number: HZT1800
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: plastic box
Delivery Time: 7days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Appllicable Drum Diameter (mm): |
Φ500~Φ1800 |
Maximum Weight Of Drum (kg): |
1500 |
Dimension (mm): |
650×150×145 |
Single Piece Weight (kg): |
40 |
Application: |
Apply To Electric Power, Communication And Relatively Industry To Lay Cable |
Warranty: |
1 Year |
Appllicable Drum Diameter (mm): |
Φ500~Φ1800 |
Maximum Weight Of Drum (kg): |
1500 |
Dimension (mm): |
650×150×145 |
Single Piece Weight (kg): |
40 |
Application: |
Apply To Electric Power, Communication And Relatively Industry To Lay Cable |
Warranty: |
1 Year |
Guide Cable Drum Roller Fiber-optic Cable Laying Stand Cable Drum Roller Stands
Description:

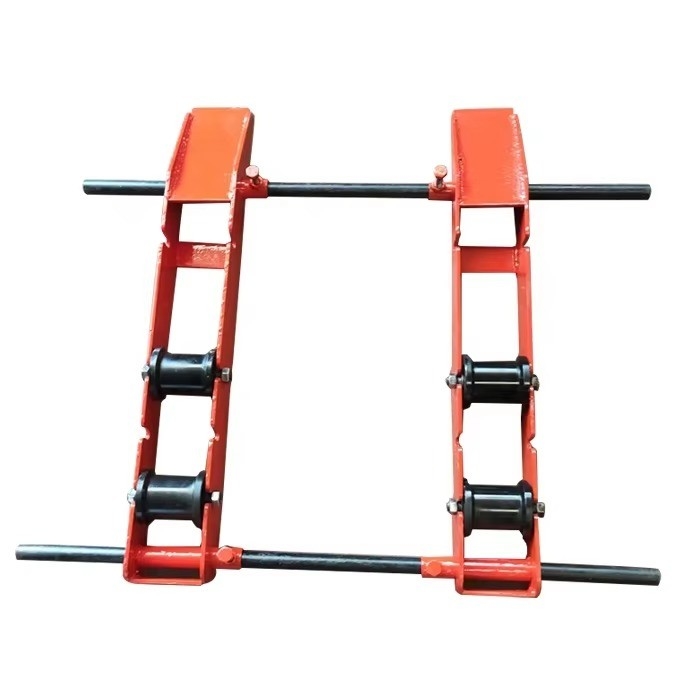

The reel rotator platform can be used as the cable reel spreading device. It can be applied to the cable laying construction in electric power, communication, and other relevant industries. This product is basically composed of the turntable, roller, roller axis, as well as the locking fixture. The roller is internally equipped with rolling bearing. While rotating, the reel is flexible.
Using Method:
1. The two platforms must be well placed on basis of the reel width.
2. The roller close to the slope needs to be locked.
3. The position of roller should be adjusted in accordance with the reel diameter.
4. The reel must be pushed to the platform along the slope.
5. Relieve the locked roller, and then the reel is able to rotate.
Essential technical parameter
| Item number | 21533 | 21552 | 21551 |
| Model | HZT1250 | HZT1800 | HZT2500 |
| Appllicable drum diameter (mm) | Φ500~Φ1250 | Φ500~Φ1800 | Φ500~Φ2500 |
| Maximum weight of drum (kg) | 500 | 1500 | 1500 |
| Dimension (mm) | 470×172×105 | 650×150×145 | 900×230×130 |
| Single piece weight (kg) | 17 | 40 | 73.5 |
Using method :
1. Mounted on two roller base on the drum diameter.
2. Lock the roller on the slope.
3. Adjust roller base on the drum diameter.
4. Slopes the drum rim up the turntable along its slants.
5. Relieve the locking roller, then you can turn the drum.
