Safety Stringing Equipment Overhead Line Construction Tools Connecting Link High Strength U Shackle

Product Details

Place of Origin: Jiangsu,China

Brand Name: SHENHONG

Certification: CE,BV,ISO

Model Number: GXK

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: negotiation

Packaging Details: cartoon

Delivery Time: 7 days after deposit

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5000 Piece/Pieces per Month

Get Best Price
High Light:

cable lug crimping tool

,

hydraulic compression tool

Application:
Construction
Rated Load:
10-300KN
Used:
Connecting
Weight:
0.15-7.5kg
Surface Treatment:
Galvanized
Body Material:
40Cr
Application:
Construction
Rated Load:
10-300KN
Used:
Connecting
Weight:
0.15-7.5kg
Surface Treatment:
Galvanized
Body Material:
40Cr
Safety Stringing Equipment Overhead Line Construction Tools Connecting Link High Strength U Shackle

Safety Stringing Equipment for Connecting Link High Strength U Shackle



High Strength U Shackle

Stringing Equipment High Strength Shackle
1. Rated load: 10~300kN
2. Weight: 0.15~7.5kgs
3. Material: High strength Steel

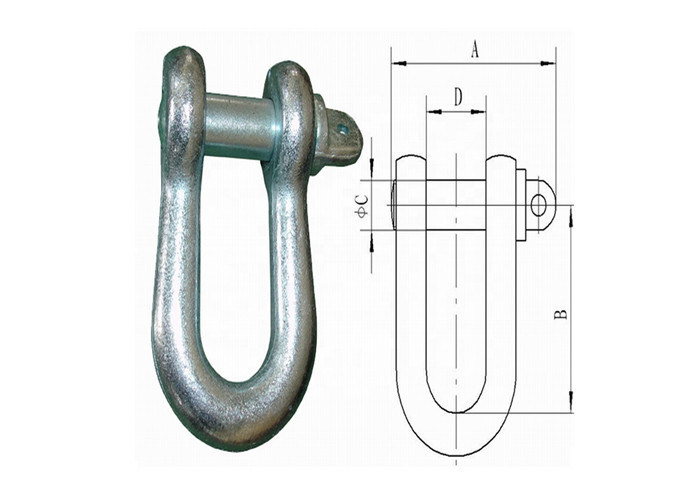

Technical data of Screw pin bow high strength connection shackle for 10-300KN by stainless steel

Model Main size(mm) Rated load(KN) Weight(kg)
A B C D
GXK-1 55 42 12 20 10 0.15
GXK-2 67 58 16 24 20 0.29
GXK-3 97 82 20 34 30 0.8
GXK-3A 97 112 20 34 30 0.9
GXK-5 107 89 22 38 50 1.12
GXK-5A 107 131 22 38 50 1.29
GXK-8 128 97 30 45 80 2.4
GXK-10 141 114 34 48 100 3.56
GXK-16 152.5 139 37 54 160 4.8
GXK-20 164 140 39 60 200 5.17
GXK-30 186 146 50 68 300 7.5



Test
