Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: CP-700
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T
Supply Ability: 10000pcs per month
Type: |
Hydraulic Pump |
Warranty: |
1 Year |
Size: |
420*260*260mm |
Max Output Pressure: |
700Bar |
Weight(kg): |
12 |
Oil Capacity: |
900cc |
Type: |
Hydraulic Pump |
Warranty: |
1 Year |
Size: |
420*260*260mm |
Max Output Pressure: |
700Bar |
Weight(kg): |
12 |
Oil Capacity: |
900cc |
700 BAR HYDRAULIC MANUAL PUMP HAND HYDRAULIC PUMP FOR POWER SUPPLY

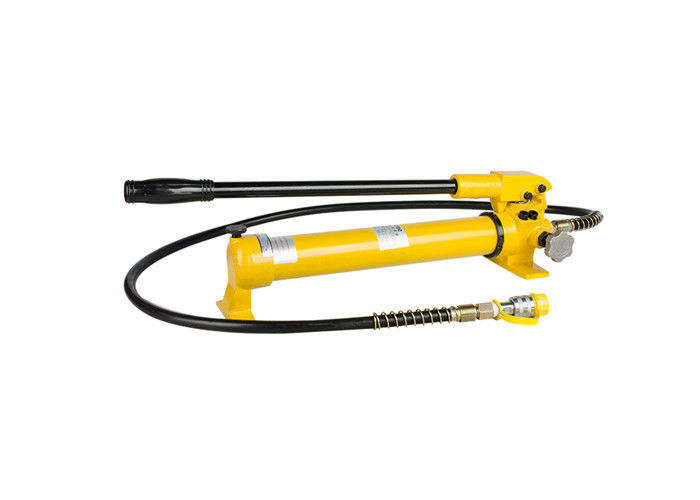

700 bar Hydraulic manual pump CP-700
| 700 bar Hydraulic manual pump CP-700 | |
| Type | hand pump |
| Max output pressure | low pressure 20kg/cm 2 high pressure 700kg/cm 2 |
| Output of oil | low pressure 13cc high pressure 2.3cc |
| Oil capacity | 900cc |
| Weight | 12kg |
| Package | wooden box |
| Package size | 510*140*150mm |
Functions:
1. Pump is designed in two stage of high and low speed for quick oil output. Even if lack of electric power, It could still be operated conviniently. It is the same as the electric pump in any working pressure and fucntion.
2. Manual operation style, oil pipe fitted with quick coupling could be odered in any length. It could be fitted with pressure meter. (CP-700-2)
3. Pressure could be stopped in middle. Inner designed over pressure safety unit protect hydraulic valve.
4. Oil pipe coupling with PT3/8 thread.
