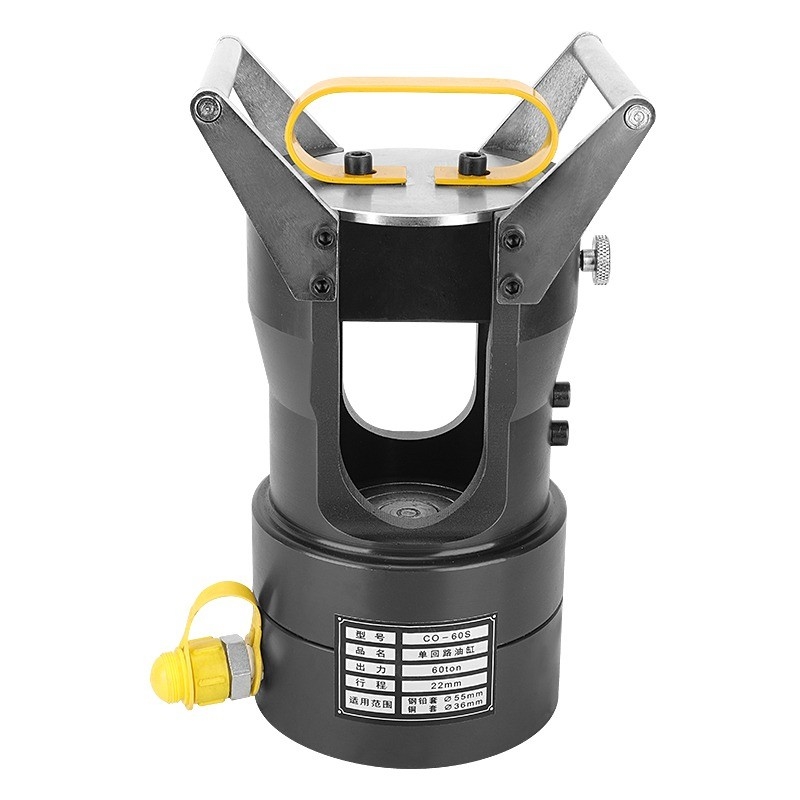

CO-60S Hydraulic Crimper Head 60T Heavy Duty Hydraulic Cable Transmission Crimping Tools

Name: CO-60S Hydraulic Crimper Head 60T Heavy Duty Hydraulic Cable Transmission Crimping Tools
Brand: SHENHONG
SKU: CO-60S
Price: 300 USD
Availability: InStock
Rating: 4.8 (113 reviews)

Product Details

Place of Origin: Jiangsu,China

Brand Name: SHENHONG

Certification: ISO

Model Number: CO-60S

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: USD300-800/pc

Packaging Details: standard export wooden case

Delivery Time: 7days after payment

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Rated Pressure:	70Mpa	Output:	60T
Weight:	21.5kg	Crimping Range:	Φ 14-32mm(for Cu& Alu)
Size:	340mm140mm160mm	Usage:	Crimping ASCR
Application:	Power Construction

Rated Pressure:	70Mpa
Output:	60T
Weight:	21.5kg
Crimping Range:	Φ 14-32mm(for Cu& Alu)
Size:	340mm140mm160mm
Usage:	Crimping ASCR
Application:	Power Construction

CO-60S Hydraulic Crimper Head 60T Heavy Duty Hydraulic Cable Transmission Crimping Tools

CO-60S Hydraulic Crimper Head 60T Heavy Duty Hydraulic Cable Transmission Crimping Tools

Application:

Connecting with ultra high pressure pump, it is used for pressing of overhead steel-cored aluminium strand and intermediate connecting pipe of steel strand and tension clamp of transmission line above 110KV.

Features:

1. Using high strength alloy steel forging processing and exquisite heat treatment to ensure the strength and service life of the equipment.
2. It is suitable for crimping of over 110kV overhead strain sleeve and continuous operation of underground cable.
3. The maximum tube sleeve size is 76mm, the crimping surface is wide, and the number of crimping is small, which can reduce the crimping deformation and control the elongation.
4. The double acting hydraulic cylinder can avoid the problem of spring fatigue and slow reset, and can shorten the reset time of piston and improve the working efficiency.
5. The movable mould can assist the operator to take out the mould easily after crimping.
6. The rotary die cover can be opened and closed quickly, which makes the operation and positioning easier.
7. Simple design, easy maintenance.
8. Equipped with quick connector, convenient for loading and unloading.
9. It must be equipped with ultra-high pressure hydraulic pump. The pump is not included in the factory. It can be selected according to customers.
10. The factory does not include mold, specific mold specifications and models, need to be matched according to customer needs.

Data Sheet

60T Heavy Duty Hydraulic cable transmission Crimping Tools CO-60S
Output	60T
Weight	21.5kg
Crimping range	Φ 14-32mm(for Cu& Alu)
Crimping dies supply	Φ 32mm 2 (for Cu& Alu)
Size	340mm140mm160mm

CO-60S Hydraulic Crimper Head 60T Heavy Duty Hydraulic Cable Transmission Crimping Tools 0

Mold comparison table
