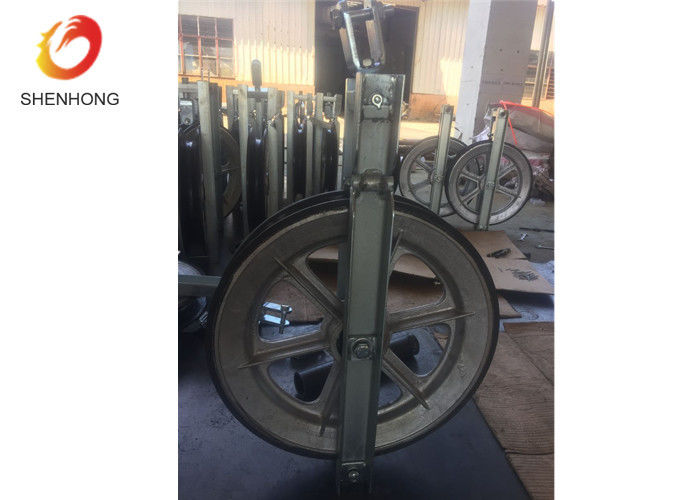

Single Sheave Stringing Conductor Large Diameter Rope Pulley Block With Rubber Linned

Single Sheave Stringing Conductor Large Diameter Rope Pulley Block With Rubber Linned
Single Sheave Stringing Conductor Large Diameter Rope Pulley Block With Rubber Linned Single Sheave Stringing Conductor Large Diameter Rope Pulley Block With Rubber Linned

Large Image :  Single Sheave Stringing Conductor Large Diameter Rope Pulley Block With Rubber Linned Get Best Price

Product Details:
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: Model 508 / 660 / 822
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: export package
Delivery Time: 15-30 days after payment
Supply Ability: 500pcs per month
Detailed Product Description
Material: Aluminum No. Of Sheave: 1
Application: Power Construction Warranty: 1 Year
Suitable Conductor: ACSR Item: Single Sheave Stringing Conductor Pulley
High Light:

rope pulley block

,

conductor stringing blocks

Single Sheave Stringing Conductor Large Diameter Rope Pulley Block With Rubber Linned

Cable Pulley Introduction
A cable pulley is a type of guiding wheel around which a woven cable, usually made of steel, can be wound.The pulley wheel will feature an axle to allow the wheel to spin, and the axle will usually be mounted to a frame that can be affixed to a solid object for stability and strength. The pulley wheel itself is usually made of a tough metal such as steel to prevent premature wear or other damage. The cable pulley wheel is usually grooved or scooped around its perimeter to provide a better guiding track for the cable.

Uses
The uses of a cable pulley can vary, though the system is usually designed to lift heavy weights or move heavy objects over a length. Woven cables are much stronger than belts or ropes in most cases, so they are better prepared to handle the weight of larger objects. It is not uncommon to find a cable pulley in an industrial setting such as a warehouse or factory, or any other setting that requires the regular movement of extremely heavy objects. The size of the cable and the pulley will dictate how much weight the system can handle, as well as the number of pulleys in the system.

Features
Corner Cable rollers, the cable rollers are used in protecting the cable during cable-laying at the tunnel construction. So the cable can be well enough to laying.

Technical Data

Model No. Sheave Number

Rate Load

(KN)

Unit Weight

(KG)

Sheave Features
SHD508 Single 20 18 Aluminum wheel with rubber liner
SHDN508 Single 20 16 MC nylon wheel
SHSLN508 Three 40 47

Middle: MC nylon wheel

Conductor: Aluminum wheel with rubber liner

SHWLN508 Five 60 79
SHSQN508 Three 40 43



MC nylon wheel

SHWQN508 Five 60 70

Note:

1. Max applicable conductor is ACSR400.
2. Sheave diameter(external diamter x groove diameter x width) is Ф508 x Ф408 x 75 mm.



Model No. Sheave Number

Rate Load

(KN)

Unit Weight

(KG)

Sheave Features
SHD660 Single 20 30 Aluminum wheel with rubber liner
SHDN660 Single 20 24 MC nylon wheel
SHSLN660 Three 40 92

Middle:MC nylon wheel

Conductor: Aluminum wheel with rubber liner

SHWLN660 Five 60 120
SHSQN660 Three 40 76



MC nylon wheel

SHWQN660 Five 60 110

Note:

1. Max applicable conductor is ACSR500.
2. Sheave diameter(external diamter x groove diameter x width) is Ф660 x Ф560 x 100 mm.



Model No. Sheave Number

Rate Load

(KN)

Unit Weight

(KG)

Sheave Features
SHDN822 Single 30 25



MC nylon wheel

SHSQN822 Three 60 118
SHWQN822 Five 120 180

Note:

1. Max applicable conductor is ACSR630.
2. Sheave diameter(external diamter x groove diameter x width) is Ф822x Ф710 x 110 mm.
