Product Details
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: -
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: get latest price
Packaging Details: Carton
Delivery Time: 10-15 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs/month
Type: |
Universal Stringing Block |
Wheel Diameter: |
φ178mm |
Wheel Width: |
76mm |
Rated Load: |
20KN |
Weight: |
10kg |
Wheel Material: |
Aluminum |
Type: |
Universal Stringing Block |
Wheel Diameter: |
φ178mm |
Wheel Width: |
76mm |
Rated Load: |
20KN |
Weight: |
10kg |
Wheel Material: |
Aluminum |

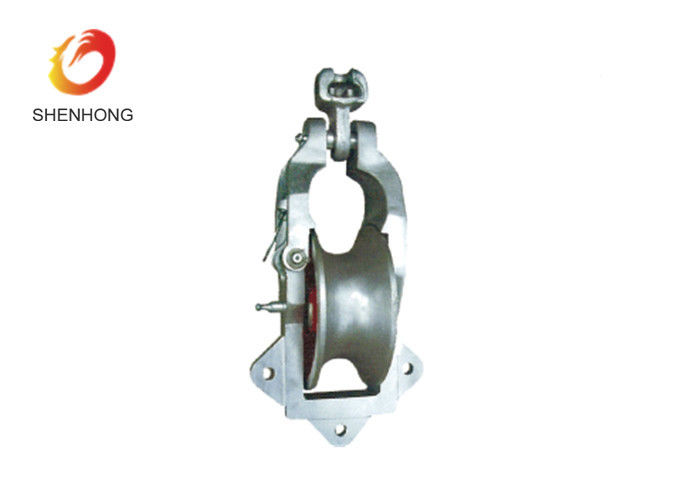

7" Aluminum Sheave Universal Stringing Block Suspension or Crossarm Roller
The stringing blocks are used for stringing small conductor on the cross arms or connected with insulators. It is versatile used stringing blocks.
The block is used for conductor stringing operation. It could be used for suspension with the hook fitting under insulators, or installed on cross arms. The sheave is made in aluminum alloy, the Nylon material is also available.
Features
Detail technical data:
Order number :10295
Rated load (kN):10
Sheave dimensions (mm):Φ178×76
Weight (kg):4.3
Note: it is a versatile block ,it either used in the head of insulator string ,or fixed on the caliper of crossarm .
Applicable crossarm width of caliper (mm):99~175
Height(mm):95~159
Caliper weight(kg):1.6
