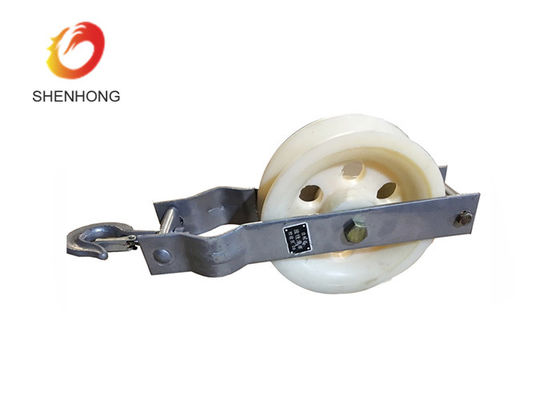

Nylon String Power Cable Pulling Pulley Block Wire Drawing Cable Guide Wheel

large.img.alt
small.img.alt small.img.alt

Large Image :  Nylon String Power Cable Pulling Pulley Block Wire Drawing Cable Guide Wheel Get Best Price

Product Details:
Place of Origin: Jiangsu,China
Brand Name: shenhong
Certification: CE,BV,ISO
Model Number: SH508
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: negotiation
Packaging Details: cartoon
Delivery Time: ten days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Piece/Pieces per Month
Detailed Product Description
Application: Line Construction Used: Pulling
Number Of Wheel: 1,3,5 Rated Load: 20-60KN
Weight: 18-70kg Material: Nylon/aluminum Alloy
Diameter: 508mm Package: Cartoon
High Light:

wire pulling pulley

,

cable pulley block

Nylon String Power Pulley Block Wire Drawing Cable Guide Wheel



Stringing pulley block overview

Cable pulley block is often laid in open trenched where the road and ground conditions result in the cable route having a number of curves. With the cable's own weight and the high tensions involved the cable cannot be fed cleanly.
The pulley block from SINTA is made of aluminium or nylon, frame is high grade galvanized steel or copper. The sturdy and robust steel frames are completely galvanized and guarantee a long working life even under extreme conditions.



Stringing pulley block features

1.To put aluminum wire, steel core aluminum strandes wire, insulated wire delay in pole and tower
2.Cable roller wheel groove can be through a lamp pipe, aluminum casing, connector etc.
3.The material is divided into aluminum alloy and MC nylon.
4. Pulley pendant divided into joint plate and hook type.



Data sheet

Model Rated load (KN) Applicable Conductor (mm²) Weight (kg) Features
SHD120×30 5 LGJ25-70 1.8 Aluminum sheave
SHD160×40 10 LGJ95-120 3.1
SHD200×40 15 LGJ150-240 4
SHD200×60 15 LGJ150-240 4.6
SHD250×40 20 LGJ150-240 4.6
SHD250×60 20 LGJ300-400 6
SHD270×60 20 LGJ300-400 7
SHD320×60 30 LGJ300-400 9.5
SHD400×80 30 LGJ400-500 15
SHDN120×30 5 LGJ25-70 1.5 Nylon sheave
SHDN160×40 10 LGJ95-120 2.5
SHDN200×40 15 LGJ150-240 3.6
SHDN200×60 15 LGJ150-240 4
SHDN250×40 20 LGJ150-240 4
SHDN250×60 20 LGJ300-400 5.8
SHDN270×60 20 LGJ300-400 6.2
SHDN320×60 30 LGJ300-400 8.3
SHDN400×80 30 LGJ400-500 13

Remarks:

1. The product is classified as hook style, clevis, etc. it must be explained clearly in writing when ordering, exceptional specification can be customized.

2. The meading of model is outside diameter of sheave × with of sheave (mm)

Nylon String Power Cable Pulling Pulley Block Wire Drawing Cable Guide Wheel 0

Nylon String Power Cable Pulling Pulley Block Wire Drawing Cable Guide Wheel 1

Advantage:

A>.The STANDARD and NON-STANDARD product are all can be customed for you.

B>. We are glad to send you the SAMPLES to show you our excellent quality.

C>.We have the special equipments to test the WLL(Working Load Limited),so our products are absolutely meet the international demand.

D>.Our company have strict standard to the surface treatment. The surface are smooth and bright.And we will do the best packing that we can do for you.



Application

Nylon String Power Cable Pulling Pulley Block Wire Drawing Cable Guide Wheel 2
