Product Details
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: SHC-120X58
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: get latest price
Packaging Details: Carton
Delivery Time: 10-15 days after payment
Payment Terms: L/C, T/T, Western Union
Type: |
Universal Crossarm Mounted And Hooked Style Stringing Block Pulley |
Wheel Diameter: |
φ120mm |
Wheel Width: |
58mm |
Rated Load: |
20KN |
Application: |
Stringing Project |
Wheel Material: |
Nylon |
Type: |
Universal Crossarm Mounted And Hooked Style Stringing Block Pulley |
Wheel Diameter: |
φ120mm |
Wheel Width: |
58mm |
Rated Load: |
20KN |
Application: |
Stringing Project |
Wheel Material: |
Nylon |

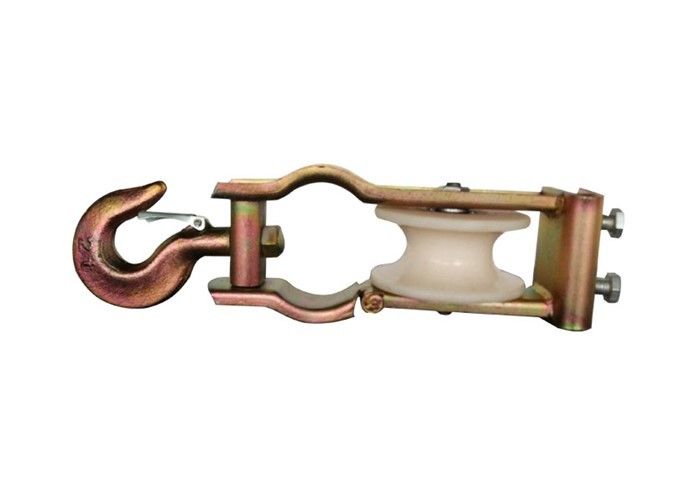

Universal Crossarm Mounted And Hooked Style Stringing Block Pulley
Description:
1. We manufacture a lot of models Cable pulling block for different uses in the overhead transmission line construction
2. They have are used to support conductors, OPGW,ADSS, communication lines
3. The sheave of the pulley blocks are made from high strength MC nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.
4. cable pulley block are high strength and flexibility, easy to use, light weight, wear-resisting, and long service life.
Universal Stringing Blocks with Hooks
The stringing blocks are used for overhead transmission line conductor stringing operation. It can be hanged or installed on cross arm
Data Sheet
Item No. | Model | O. D. of Sheave (mm) | Sheave Width (mm) | Rated Load (KN) | Weight (kg) | Material |
10261 | SHC-80X50 | Φ80 | 50 | 5 | 1.9 | Aluminum |
10262 | SHC-120X30 | Φ120 | 30 | 5 | 2.1 | |
10263 | SHC-160X40 | Φ160 | 40 | 10 | 2.5 | |
10264 | SHC-120X58 | Φ120 | 58 | 20 | 3.5 | |
10271 | SHCN-80x50 | Φ80 | 50 | 5 | 1.4 | Nylon |
10272 | SHCN-120x30 | Φ120 | 30 | 5 | 1.6 | |
10273 | SHCN-160x40 | Φ160 | 40 | 10 | 2 | |
10274 | SHCN-120x58 | Φ120 | 58 | 20 | 2.5 |
