Product Details
Place of Origin: Jiangsu, China
Brand Name: shenhong
Certification: CE,BV,ISO
Model Number: QHN
Payment & Shipping Terms
Minimum Order Quantity: 5 pieces
Price: negotiation
Packaging Details: plastic bag
Delivery Time: ten days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Piece/Pieces per Month
Application: |
Construction |
Type: |
Hoisting Tackle |
Used: |
Lifting |
Material: |
MC Nylon Or Aluminous Alloy |
Rated Load: |
10-150KN |
Weight: |
1.8-13.9kg |
Application: |
Construction |
Type: |
Hoisting Tackle |
Used: |
Lifting |
Material: |
MC Nylon Or Aluminous Alloy |
Rated Load: |
10-150KN |
Weight: |
1.8-13.9kg |

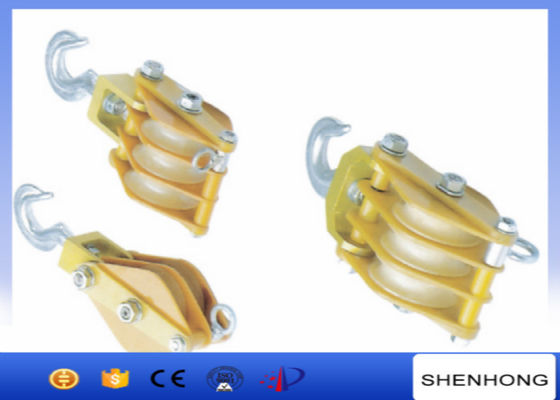

10-150KN Aluminous alloy and nylon sheave hoisting tackle, rope pulley block
Application
It is applied in line construction to craning weight,ect.It is light because it adopts aluminous alloy side panel and MC nylon sheave.The monosheave block is open.
Technical data of 10-150KN Aluminous alloy and nylon sheave hoisting tackle, rope pulley block
| Model | Number of sheaves | Rated load(KN) | Weight(kg) | Outside diameter * width(mm) | Diameter of rope(mm) | Hoisting point type | ||
| QHN1-1K | 1 | 10 | 1.8 | Φ100*31 | Φ7.7 | G | H | |
| QHN1-2 | 2 | 10 | 1.8 | Φ80*27 | Φ6 | G | H | |
| QHN1-3 | 3 | 10 | 2.1 | Φ80*27 | Φ6 | G | H | |
| QHN2-1K | 1 | 20 | 2.2 | Φ120*35 | Φ9.3 | G | H | B |
| QHN2-2 | 2 | 20 | 2.6 | Φ100*31 | Φ7.7 | G | H | |
| QHN2-3 | 3 | 20 | 3.7 | Φ100*31 | Φ7.7 | G | H | |
| QHN3-1K | 1 | 30 | 3.4 | Φ150*39 | Φ11 | G | H | B |
| QHN3-2 | 2 | 30 | 4.5 | Φ120*35 | Φ9.3 | G | H | |
| QHN3-3 | 3 | 30 | 4.6 | Φ100*31 | Φ7.7 | G | H | |
| QHN5-1K | 1 | 50 | 5.2 | Φ166*40 | Φ13 | G | H | B |
| QHN5-2 | 2 | 50 | 5.5 | Φ150*39 | Φ11 | G | H | |
| QHN5-3 | 3 | 50 | 5.1 | Φ120*35 | Φ9.3 | G | H | |
| QHN8-1K | 1 | 80 | 7.2 | Φ205*49 | Φ17 | G | H | B |
| QHN8-2 | 2 | 80 | 8.3 | Φ166*40 | Φ13 | G | H | |
| QHN8-3 | 3 | 80 | 7.9 | Φ150*39 | Φ11 | G | H | |
| QHN10-1K | 1 | 100 | 11.4 | Φ246*60 | Φ18.5 | G | B | |
| QHN10-2 | 2 | 100 | 10.2 | Φ166*40 | Φ13 | H | ||
| QHN10-3 | 3 | 100 | 11.7 | Φ150*39 | Φ11 | H | ||
| QHN15-1K | 1 | 150 | 12.1 | Φ280*65 | Φ21.5 | B | ||
| QHN15-2 | 2 | 150 | 12.8 | Φ205*49 | Φ17 | H | ||
| QHN15-3 | 3 | 150 | 11.8 | Φ166*40 | Φ13 | H | ||
| QHN15-4 | 4 | 150 | 13.9 | Φ150*39 | Φ11 | H | ||
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
