Product Details
Place of Origin: Jiangsu,China
Brand Name: shenhong
Certification: BV,CE,ISO
Model Number: co-500
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: plywood case
Delivery Time: ten days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Month
Application: |
Line Construction |
Crimping Range: |
16-500mm2 |
Max Compression: |
22Ton |
Crimping Tool: |
Hexagon |
Weight: |
11kg |
Package: |
Plywood Case |
Application: |
Line Construction |
Crimping Range: |
16-500mm2 |
Max Compression: |
22Ton |
Crimping Tool: |
Hexagon |
Weight: |
11kg |
Package: |
Plywood Case |

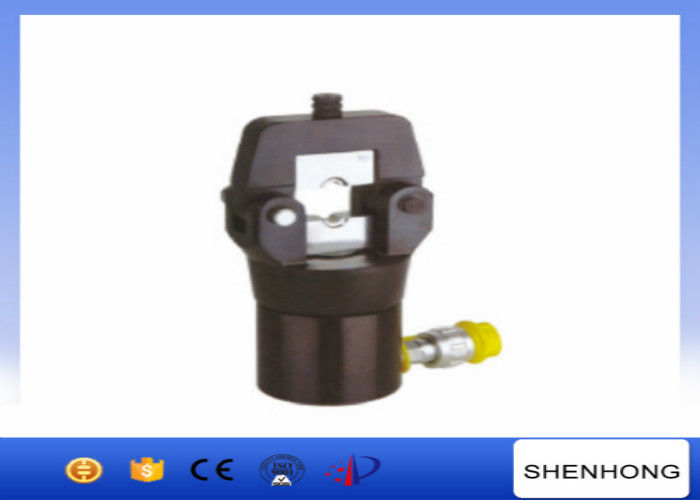

Hexagon Crimping Tool Overhead Line Construction Tools Hydraulic Compresso
Application
It is applicable to all kinds of fittings, overhead underground cable. It is equipped with high-voltage cable bushing, clip naked terminal, hexagonal die-casting.
When the mold specifications are incomplete, you can customize you wanted.
Features
1.Light weight and easy to move
2.Crimping hexagon form
3.Split type
Technical data of CO-500 22T Hydraulic hexagon crimping tool hydraulic compressor for 16-500mm2
| Model | Maximum compression(T) | Crimping range(mm2) | Crimping form | Die sets(mm2) | Weight(kg) | |||
| CO-500 | 22 | 16-500 | Hexagon |
16,25,35,50,70,95,120 ,150,185,240,300,400,500 |
11 | |||
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
