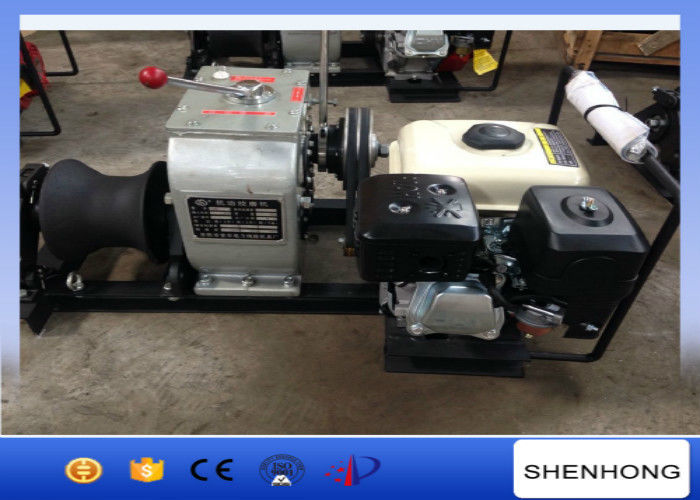

High Versatility Single Capstan Gas Engine Powered Winch With Honda GX160 5.5HP

Product Details

Place of Origin: MADE IN CHINA

Brand Name: SHENGHONG

Certification: ISO

Model Number: JJM3Q

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD1000-1200

Packaging Details: plywood case

Delivery Time: 10 days after payment

Payment Terms: L/C, T/T, Western Union

Get Best Price
Highlight:

honda gas powered winch

,

gas powered winches

Product Name:
3T Single Capstan Gas Engine Powered Winch With Honda GX160 5.5HP
Engine:
HONDA Gasoline GX160
Power:
5.5HP
Application:
Cable Pulling
Weight:
100kg
Dimension:
860x450x500mm
Product Name:
3T Single Capstan Gas Engine Powered Winch With Honda GX160 5.5HP
Engine:
HONDA Gasoline GX160
Power:
5.5HP
Application:
Cable Pulling
Weight:
100kg
Dimension:
860x450x500mm
High Versatility Single Capstan Gas Engine Powered Winch With Honda GX160 5.5HP

High Versatility Single Capstan Gas Engine Powered Winch With Honda GX160 5.5HP





Application

It is used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.



Features

1. High versatility

2. Compactstructure

3. Smallvolume, lightweight, convenience in using and transferring

4. Driving stably

5. Very light noise

6. With big drum rope capacity to make you a wide range of choice for the lifting height or pulling length.

7. Adjustable lifting or pulling speed for different usage environment.



Technical Data

Model Type Engine Power Gear Pulling Speed(m/min) Line Pull(Ton)
JJM3-Q Honda Petrol engine 5.5HP Slow 4 3
Quick 7 1.8
Reverse 3.5



Test Before Delivery

High Versatility Single Capstan Gas Engine Powered Winch With Honda GX160 5.5HP 0

Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.



Package

1. The machine will be loaded in container and fixed with steel wire rope.

2. The accessory and operation manual will be packed in plywood case.



Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.



Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
