Product Details
Place of Origin: Jiangsu,China
Brand Name: SHENHONG
Certification: ISO
Model Number: YQK-400
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: negotiation
Packaging Details: plastic box
Delivery Time: 7days after payment
Payment Terms: L/C, T/T
Supply Ability: 1000pcs per month
Crimping Type: |
Hexagon |
Crimping Range: |
16-400mm2 |
Crimping Force: |
12ton |
Stroke: |
22mm |
Item: |
YQK-400 12 Ton Hydraulic Cable Lug Crimping Tool |
Application: |
Cable Lug Terminal Crimping |
Crimping Type: |
Hexagon |
Crimping Range: |
16-400mm2 |
Crimping Force: |
12ton |
Stroke: |
22mm |
Item: |
YQK-400 12 Ton Hydraulic Cable Lug Crimping Tool |
Application: |
Cable Lug Terminal Crimping |

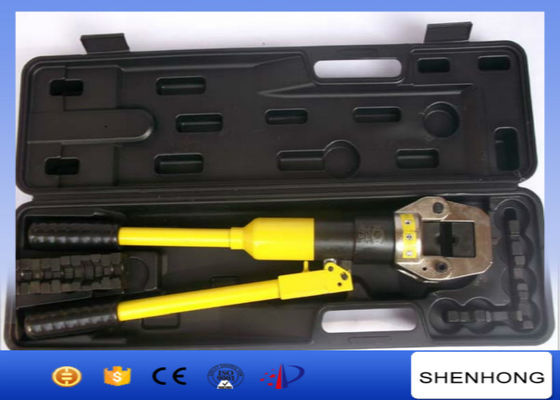

YQK-400 12 Ton Hydraulic Cable Lug Crimping Tool Crimping Plier 16-400mm2
Quick Infomation
crimping range:16-400mm2
Max pressure: 12T
Max travel: 22mm
Accessories: 16,25,35,50,70,95,120,150,185,240,300,400
crimping type : besiege pressure
Advantage.
Quter design with beauty.
Slow speed:Guarantee quality with easy operation.
High speed:Hydraulic mould reaches hydration pipe fast.
There is a safe protective equipment of"kacha"voice when it reaches to high or low pressue.
Features
The terminal pressure tools is suitable for DIN, AWG,JIS standard.
Hydraulic crimping tools is a professional tool for crimping copper and aluminum ligs with different types, a wide range of crimping dies from 4mm² to 1000mm² to suit for different size demand. The main crimping shape is hexagonal, special shape design is provided by special making.
Open cut design for convenient operation.
Dies are quickly put on tube by double speed unit. Then compression force lift and automatically change to low speed . The operation finishes with energy saving and time shorten.
The built-in safely valve will by-pass the oil supply when the maximum pressure is reached, and the pressure release system can easily be operated at any stage of compression.
Data Sheet
|
Crimping Range |
Cu 16-400mm2 |
|
Crimping Force |
16T |
|
Crimping Type |
hexagon crimping |
|
Stroke |
24 mm |
| Length |
600mm |
|
Weight |
approx. 11.5kg |
|
Package |
plastic case |
|
Standard Accessories |
16,25,35,50,70,95,120,150,185,240,300mm2 |
by shipping,by air,also can Courier Mail/express!!
Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
