Product Details
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: SFS1, SFS2, SLX-3, SLX-5
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: export package
Delivery Time: 15 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10sets/week
Name: |
Conductor Aerial Cart |
Usage: |
To Mount Accessories And To Overhaul. |
Application: |
Overhead Line Tranmission |
For: |
1,2,4 Conductor |
Warranty: |
1 Year |
Item: |
Spacer Bicyle |
Name: |
Conductor Aerial Cart |
Usage: |
To Mount Accessories And To Overhaul. |
Application: |
Overhead Line Tranmission |
For: |
1,2,4 Conductor |
Warranty: |
1 Year |
Item: |
Spacer Bicyle |

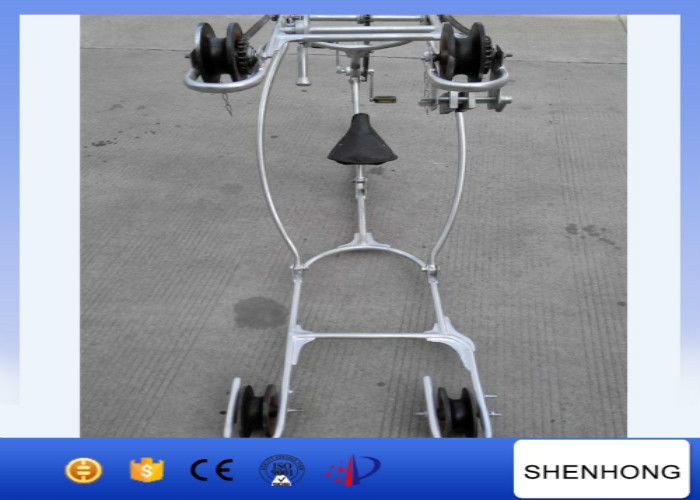

Overhead Line Conductor Installation Stringing Tools Conductor Aerial Cart
Transmission line stringing tools are widely used in overhead transmission line stringing and tension opeation.
We have designed and manufactured sets of tools for transmission line stringing and tension operation. Those special tools include of come along clamps, stringing blocks, anti twisting braided steel ropes, swivel joints, fixed joints, running boards, hoists, compressors, joint protectors, conductor cutters, aerial bicycles, socket pullng grips, Zoom sag scope, tension dynamometers, conductor thermometers, ladders, platforms, conductor lifters etc.
2 Bundled Conductor Aerial Cart
| Item No. | Model | Rated Load (KN) | Distance BT. conductors | Weight (kg) | Style |
| 17251 | SFS2 | 1 | 400, 450, 500 | 34, 36 | Horizontal bicycle |
| 17253 | SFS400 | 1 | 400 | 40 | Vertical bicycle |
| 17255 | FC400/450S | 1 | 400~450 | 34 | Horizontal bicycle |
| 17256 | SFS1-400 | 1.5 | 400 | 38 | Horizontal cart |
| 17257 | SFS1-450 | 1.5 | 450 | 40 | Horizontal car |
Application:
It is used to install conductor spacers or other attachments and inspect lines on 2 bundled conductors.
Note:
Arrangement (horizontal or vertical) and distance between sub conductors of the bundle should be specified in the order.
Single Conductor Aerial Cart
| Item No. | Model | Rated Load (KN) | Wheel Diameter (mm) | Weight (kg) | Style |
| 17261 | SFD1A | 1 | Φ55 | 7 | Hand operated, fold |
| 17262 | SFD1B | 1 | Φ80 | 7 | |
| 17263 | SFD2 | 1 | Φ160 | 11 | Hand operated, w/ guard |
| 17264 | SFD3 | 1 | Φ160 | 34 | Bicycle |
Application:
Used to install conductor attachments and inspect lines on single conductor. SFD1A is used for telecom lines.
4 Bundled Conductor Aerial Cart
| Item No. | Model | Rated Load (KN) | Weight (kg) | Distance BT. conductors | Style |
| 17271 | SFS1 | 1.5 | 40 | 450, 500 | Basket type |
| 17272 | SFS3 | 1 | 40 | 400, 450, 500 | Bicycle, fold |
| 17273 | FCS400/450 | 1 | 44 | 400~450 | Bicycle, fold |
Application:
It is used to install conductor attachments and inspect lines on 4 bundled conductors.
Note:
The distance between sub conductors of the bundle should be specified in the order.
Shipment
1. The blocks will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Package
1. The blocks will be loaded in container.
2. It also can be packed in plywood case or steel frame case.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
