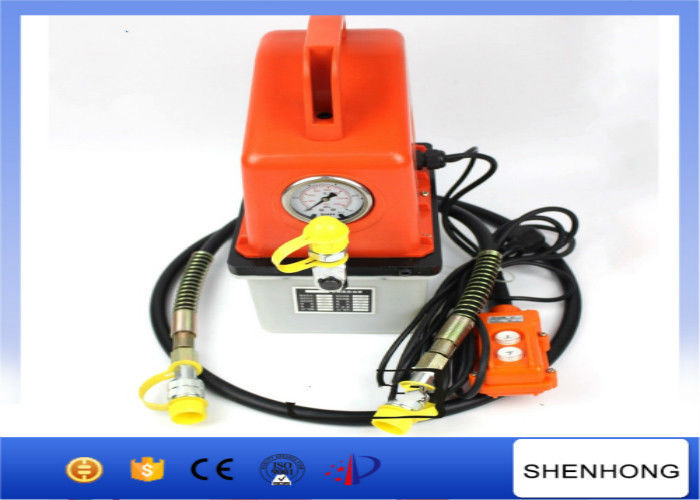

700 Bar High Pressure Hydraulic Electric Pump Station 4000cc Oil Reservoir CTE-25AS

Product Details

Place of Origin: Jiangsu, China

Brand Name: SHENHONG

Certification: ISO

Model Number: CTE-25AS

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: negotiation

Packaging Details: Standard export wooden case

Delivery Time: 7 days after payment

Payment Terms: L/C, T/T

Supply Ability: 1000sets per month

Get Best Price
High Light:

cable lug crimping tool

,

hydraulic lug crimping tool

Type:
Electric Hydraulic Pump
Useage:
Provide Power
Oil Reservoir:
4000cc
Size:
350*270*490mm
Flow Rate:
Low Pressure:2.6L/Min High Pressure:0.32L/Min
Oil Capacity:
2.7L
Type:
Electric Hydraulic Pump
Useage:
Provide Power
Oil Reservoir:
4000cc
Size:
350*270*490mm
Flow Rate:
Low Pressure:2.6L/Min High Pressure:0.32L/Min
Oil Capacity:
2.7L
700 Bar High Pressure Hydraulic Electric Pump Station 4000cc Oil Reservoir CTE-25AS

700 Bar High Pressure Hydraulic Electric Pump Station 4000cc Oil Reservoir CTE-25AS​





Features

1. Electromangetic valve contral to withdraw piston in any position ;

2. High and low speed two stage for quick oil output. Turbine oil absorption could ensure max. effective oil volume.

3. Pressure safety valve over pressure unit could aviod over pressure damage. At700kg/cm2,automatically pressure release.

4. High pressure is for driving piston and low pressure is for piston reset.

5. Oil pipe fitted with quick coupling could be ordered at any length.

6. Oil pipe coupling fitted with PT3/8'' thread.



Data Sheet

Item No. CTE-25AS
Working pressure high pressure:70Mpa low pressure:7Mpa
Rated output high pressure:0.6L/min low pressure:3.52L/min
Power Rating 600W Speed 1400r/min
Working Power 50Hz, 220V/3A
Oil Capacity 3L Type of oil 15# antiwear hydraulic oil
