Product Details
Place of Origin: Jiangsu,China
Brand Name: SHENHONG
Certification: ISO
Model Number: YQK-240
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: negotiation
Packaging Details: plastic box
Delivery Time: 7days after payment
Payment Terms: L/C, T/T
Supply Ability: 1000pcs per month
Crimping Type: |
Hexagon |
Crimping Range: |
16-240mm2 |
Crimping Force: |
7ton |
Stroke: |
18mm |
Weight(kg): |
3.0 |
Length: |
475mm |
Crimping Type: |
Hexagon |
Crimping Range: |
16-240mm2 |
Crimping Force: |
7ton |
Stroke: |
18mm |
Weight(kg): |
3.0 |
Length: |
475mm |

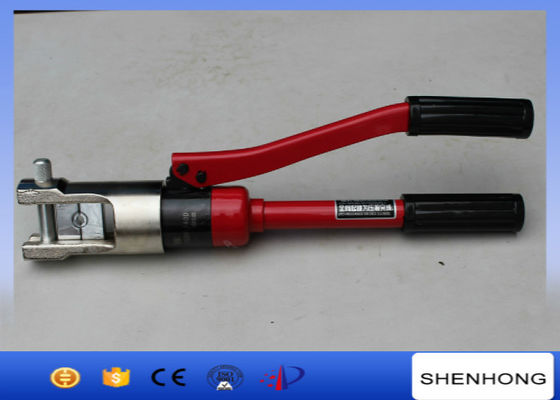

YQK-240 7 Ton Hydraulic Copper Cable Lug Crimping Tool from 16 to 240mm2
Features
Hydraulic Crimping Tool is a processional tool for crimping copper and aluminum lugs with different types, a wide range of crimping dies from 4 mm2 to 1000 mm2 to suit for different size demand. The main crimping shape is hexagonal, special shape design is provided by special making..
Product Description:
|
TECHNICAL DATA |
|
| Crimping range | Cu 16-240mm² |
| Stroke | 18mm |
| Crimping type | hexagon crimping |
| Crimping force | 70KN |
| weight | approx.3.6kg |
| weight of box | approx.1.8kg |
| Length | approx.475mm |
| Package | plastic box |
| ACCESSORIES | |
| Crimping dies16,25,35,50,70,95,120,150,185,240mm² | |
Package
