Product Details
Place of Origin: Jiangsu,China
Brand Name: SHENHONG
Certification: ISO
Model Number: EP-510
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: negotiation
Packaging Details: plastic box
Delivery Time: 7days after payment
Payment Terms: L/C, T/T
Supply Ability: 1000pcs per month
Crimping Type: |
Hexagon |
Crimping Range: |
50-400mm2 |
Crimping Force: |
13ton |
Stroke: |
38mm |
Die Sets: |
50, 70, 95, 120, 150, 185, 240, 300, 400mm2 |
Product Name: |
EP-510 Hydraulic Crimping Tool Manual Hydraulic Hose Crimping Tool |
Crimping Type: |
Hexagon |
Crimping Range: |
50-400mm2 |
Crimping Force: |
13ton |
Stroke: |
38mm |
Die Sets: |
50, 70, 95, 120, 150, 185, 240, 300, 400mm2 |
Product Name: |
EP-510 Hydraulic Crimping Tool Manual Hydraulic Hose Crimping Tool |

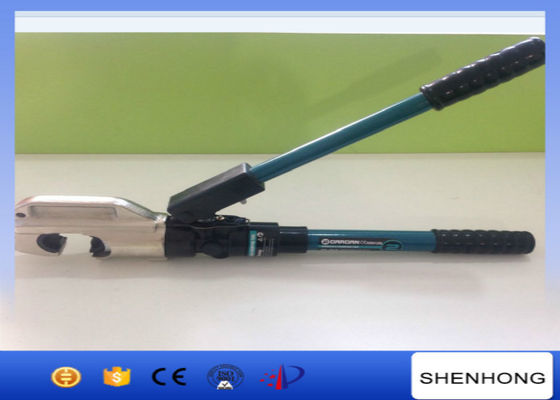

Hexagon Underground Cable Installation Tools Hydraulic Cable Lug Crimping Tool EP-510
Description
1. Applied for leads of power and civil cable in which copper and aluminum terminals and cennection tubes are pressed by hydraulic pressure.
2. Compact crimp connection and good conductivity,not easy to break.
3. High speed,low pressure,fast oiling ,easy opertion and the oil cycling is convenient.
4. The tool is packeged in plastic box.
Quick Information
1. Hydraulic Tool,hydrauic crimping tool,hydraulic crimping plier ,hydraulic compression tool
2. hydraulic tool Automatic restoration when the pressure reach 700kg/cm2
3. hydraulic tool 180-degree rotatable head
4. Crimping force:13T
5. Stroke:38mm
6. Oil capacity:145cc
7. Standard dies:50.70.95.120.150.185.240.300 sq.mm
8. Hydraulic oil:K32
Technical Reference:
| ITEM | CRIMPING RANGE | PRESSURE(t) | STROKE(mm) | OIL STOCKPILE(cc) | SIZE OF SANDARD DIES(mm²) | WEIGHT(kg) |
| EP-430 | ≤300mm² | 13 | 38 | 145 | 50.70.95.120.150.185.240.300.400 | 6.4 |
| EP-510 | ≤350mm² | 13 | 38 | 145 | 50.70.95.120.150.185.240.300.400 | 7.8 |
