Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: J40
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: negotiation
Packaging Details: cartons
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T
Supply Ability: 1000pcs per month
Type: |
Ratchet Cutter |
Size: |
34.6x12.3x3.8 Cm |
Weight(kg): |
1.15kg |
Cutting Range: |
Cu&Al Smaller Than 300mm2 |
Model: |
J40 |
Name: |
J40 Ratchet Types Cable Cutter For For Armored Cable And Copper And Aluminum Cable 300mm2 |
Type: |
Ratchet Cutter |
Size: |
34.6x12.3x3.8 Cm |
Weight(kg): |
1.15kg |
Cutting Range: |
Cu&Al Smaller Than 300mm2 |
Model: |
J40 |
Name: |
J40 Ratchet Types Cable Cutter For For Armored Cable And Copper And Aluminum Cable 300mm2 |

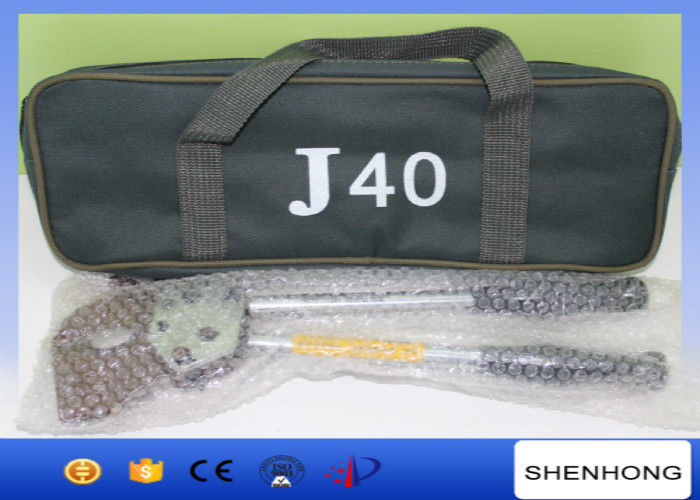

J40 Ratchet Types Cable Cutter for for Armored cable and Copper and Aluminum Cable 300mm2
BRIEF INTRODUCTION
1. Cutting range: for armored cable and copper and aluminum cable, φ30mm(300mm²)
2. Not for cutting stressed steel wire and steel wire knives can be sharpened or replaced.
Feature:
1. Cutting cu/al armored cable below diameter 300mm2
2. Blades can be resharpened or exchanged.
3. Ratchet structure saves labor
4. 30% labor save cause of handles special design
5. Packed with carrying bag.
6. Size: 346x123x38 mm
7. Weight: 1.15kg
Different Types of Cable Cutter
| 1 | J13 | Cutting Range | ACSR≤720mm2,Prestressed steel wire≤150mm2 |
| Weight | 1.95kg | ||
| 2 | J30 | Cutting Range | ACSR≤630mm2,Prestressed steel wire≤100mm2 |
| Weight | 3.6kg | ||
| 3 | J25 | Cutting Range | ACSR≤800mm2,Prestressed steel wire≤150mm2 |
| Weight | 3.45kg | ||
| 4 | J50 | Cutting Range | ACSR≤1440mm2 |
| Weight | 3.2kg | ||
| 5 | J14 | Cutting Range | steel wire rope≤20mm |
| Weight | 2kg | ||
| 6 | J25A | Cutting Range | steel wire rope≤30mm |
| Weight | 3.55kg | ||
| 7 | J33 | Cutting Range | steel wire rope≤33mm |
| Weight | 5.15kg | ||
| 8 | J40A | Cutting Range | Copper&Aluminum Cable ≤300mm2 |
| Weight | 1kg | ||
| 9 | J40B | Cutting Range | Copper&Aluminum Cable ≤240mm2 |
| Weight | 0.65kg | ||
| 10 | J40C | Cutting Range |
For Big blade,Copper&Aluminum Cable ≤300mm2; For small blade,steel cable |
| Weight | 1.1kg | ||
| 11 | J40D | Cutting Range | Copper&Aluminum Cable ≤300mm2 |
| Weight | 1.05kg | ||
| 12 | J40 | Cutting Range |
Copper&Aluminum Cable ≤300mm2; 1000 pairs coommunication cable |
| Weight | 1.15kg | ||
| 13 | J52 | Cutting Range | Copper&Aluminum armoured cable≤500mm2 |
| Weight | 3.1kg | ||
| 14 | J75 | Cutting Range |
Copper&Aluminum armoured cable≤3×120mm2; Copper&Aluminum armoured cable≤75mm; 3600 pairs coommunication cable |
| Weight | 3.6kg | ||
| 15 | J95 | Cutting Range |
Copper&Aluminum armoured cable≤3×185mm2; Copper&Aluminum armoured cable≤95mm |
| Weight | 5kg | ||
| 16 | J100 | Cutting Range |
Copper&Aluminum armoured cable≤3×300mm2; Copper&Aluminum armoured cable≤100mm |
| Weight | 6.6kg | ||
| 17 | J130 | Cutting Range | Copper&Aluminum armoured cable≤130mm |
| Weight | 8.3kg | ||
| 18 | J160 | Cutting Range | Copper&Aluminum armoured cable≤160mm |
| Weight | 11.1kg |
