Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: JJM1Q
Payment & Shipping Terms
Minimum Order Quantity: 2 sets
Price: negotiation
Packaging Details: standard export wooden case
Delivery Time: 7 days after payment
Supply Ability: 500 set/sets per month
Material: |
Steel |
Engine: |
YAMAHA Gasoline MZ175 |
Capacity: |
10KN |
Type: |
Gas Powered Winch |
Product Name: |
Gas Engine Powered Winch 1 Ton With Yamaha Gasoline Engine MZ175 |
Power: |
5.5HP |
Material: |
Steel |
Engine: |
YAMAHA Gasoline MZ175 |
Capacity: |
10KN |
Type: |
Gas Powered Winch |
Product Name: |
Gas Engine Powered Winch 1 Ton With Yamaha Gasoline Engine MZ175 |
Power: |
5.5HP |

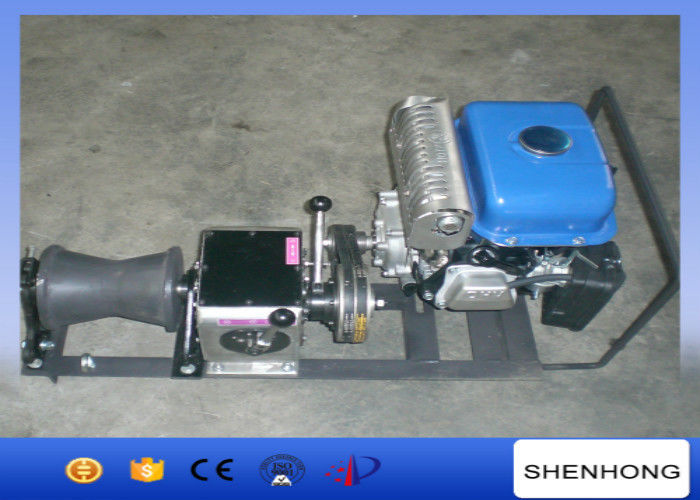

Steel Gas Engine Powered Winch 1 Ton With Yamaha Gasoline Engine MZ175
Winch Introduction
A winch is a mechanical device that is used to pull in (wind up) or let out (wind out) or otherwise adjust the "tension" of a rope or wire rope (also called "cable" or "wire cable"). In its simplest form it consists of a spool and attached crank. In larger forms, winches stand at the heart of machines as diverse as tow trucks, steam shovels and elevators. The spool can also be called the winch drum. More elaborate designs have gear assemblies and can be powered by electric, hydraulic, pneumatic or internal combustion drives. Some may include a solenoid brake and/or a mechanical brake or ratchet and pawl device that prevents it from unwinding unless the pawl is retracted.
Application
Powered winches are the construction tools of erecting electric circuits of high pressure electric transmission in the sky and laying electrical cables underground.
They can complete the tasks of heavy-lifting and dragging such as erecting the wire.
Testified by the experiments and practical uses, they have reasonable structure, small volume, light weight, strong power, nimble operation and convient transporting.
Based on so many advantages, this Powered winch is popular with the electric workers.
Features
1. Reasonable structure
2. Small volume
3. Light weight
4. Strong power
5. Nimble operation
6. Convenient transporting.
Technical Data
| Model Type | Power | Gear | Pulling Force(KN) | Pulling Speed(m/min) |
| JJM-1Q | YAMAHA MZ175 | Slow | 6 | 0.8 |
| Quick | 18 | 0.6 | ||
| Reverse | 15 | no lifting |
DIAGRAM&PARTS LIST
| Item | Description | Item | Description | Item | Description | Item | Description |
| 1# | chassis | 19# | Brake hoop | 37# | Tank cover | 55# | 03-08bearing cap |
| 2# | 3#axle | 20# | Brake disc | 38# | Transparency cover | 56# | 05-05bearing bush |
| 3# | Plug screw | 21# | shield | 39# | Nameplate | 57# | 4#shaft end ring |
| 4# | 03-05bearing cap(2) | 22# | Big belt pulley | 40# | 03-02bearing cap | 58# | 03-06bearing cap |
| 5# | 0.2-07wheel gear | 23# | Small belt pulley | 41# | Shift hand wheel | 59# | 05-06bearing bush |
| 6# | 05-04bearing bush | 24# | Clutch disc | 42# | 02-01dual gear | 60# | underframe |
| 7# | 02-09wheel gear | 25# | Linkage plate | 43# | Shift fork | 61# | Support plate |
| 8# | Frictional disk | 26# | Clutch handle | 44# | Shifter shaft | 62# | Clutch arm |
| 9# | Ratchet wheel | 27# | Clutch lining | 45# | Shifter shaft spring | 63# | capstan |
| 10# | Pawl washer | 28# | 03-01bearing cap(2) | 46# | 1#axle | 64# | 05-03bearing bush |
| 11# | 07-08friction plate(6) | 29# | 0#washer(2) | 47# | 02-05wheel gear | 65# | 4#axle |
| 12# | Pawl ring | 30# | 02-02wheel gear | 48# | 03-04bearing cap | 66# | 03-07bearing cap |
| 13# | Brake shaft | 31# | 0#axle | 49# | 02-03wheel gear | 67# | Support plate |
| 14# | pawl | 32# | Woodruff key | 50# | 2#axle | 68# | Support plate bolt |
| 15# | Pawl shaft | 33# | 02-04wheel gear | 51# | 02-10wheel gear | 69# | Support plate |
| 16# | Brake spring | 34# | Belt feed lever seat | 52# | 02-08wheel gear | 70# | 05-02bearing bush |
| 17# | Clamping handle | 35# | Belt feed lever | 53# | 4#axle ring | 71# | 05-07bearing bush |
| 18# | 02-06wheel gear | 36# | Shift fork handle | 54# | Rubber seal | 72# | Capstan catch |
Service:
1. Deemed continuous improvement as our permanent pursuits.
2. We have introduced many advanced equipments and mature techniques, to meet various of customers’ requirements.
3. We can adjustment the price according to your market demand’s changes, and also can launch a series of promotional activities in a bad economic environment.
4. We will do our best to deal with the problems our customers encountered, in order to ensure our customers' satisfaction and also improve our better reputation.
