Product Details
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: JJM5Q
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: plywood case
Delivery Time: 10 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/week
Product Name: |
5 Ton Gasoline Wire Rope Winch For Cable Pulling During Tower Erection |
Engine: |
Honda Gasoline Engine |
Power: |
13HP |
Load Capacity: |
5T |
Application: |
Cable Pulling |
Weight: |
160kg |
Product Name: |
5 Ton Gasoline Wire Rope Winch For Cable Pulling During Tower Erection |
Engine: |
Honda Gasoline Engine |
Power: |
13HP |
Load Capacity: |
5T |
Application: |
Cable Pulling |
Weight: |
160kg |

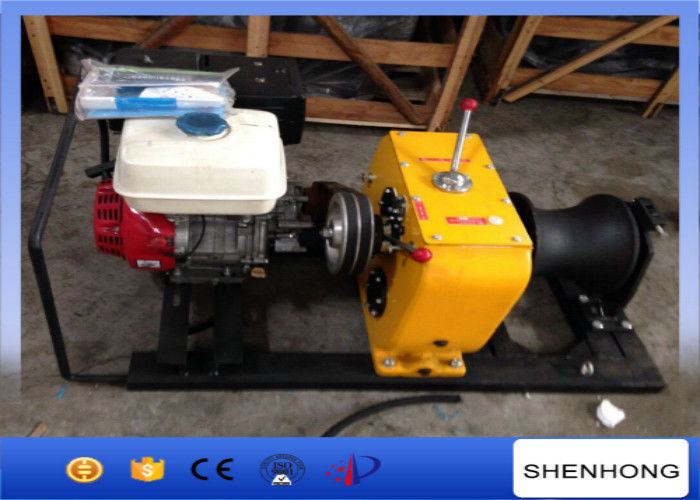

Honda Gasoline Powered Winch 5T , Tower Erection Cable Pulling Winch
Introduction
A winch is a mechanical device that is used to pull in (wind up) or let out (wind out) or otherwise adjust the "tension" of a rope or wire rope (also called "cable" or "wire cable"). In its simplest form it consists of a spool and attached hand crank. In larger forms, winches stand at the heart of machines as diverse as tow trucks, steam shovels and elevators. The spool can also be called the winch drum. More elaborate designs have gear assemblies and can be powered by electric, hydraulic, pneumatic or internal combustion drives. Some may include a solenoid brake and/or a mechanical brake or ratchet and pawl device that prevents it from unwinding unless the pawl is retracted.
Quick Detail
1. Gas engine powered winch
2. Max Pulling Force:50KN
3. Weight:160kg
4. Dimension:1200x600x700mm
Application
It is used for tower erection and sagging operation in line construction. It can also be used for pulling conductor or underground cable
Features
Light weight, easy to operate and maintain. There is mechanical brake system composed in the Gear Box. The brake can hold the steel wire rope when there is emergency.
Technical Data
| Model Type | Gear | Pulling Force(KN) | Pulling Speed(m/min) | Power | Weight(KG) |
| JJM5Q | Slow | 50 | 5 | HONDA GASOLINE GX390 13HP | 180 |
| Fast | 30 | 11 | |||
| Reverse | - | 3.2 |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Package
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
