YAMAHA Gas Engine Powered Winch / Cable Pulling Winch 5T Load Capacity

Product Details

Place of Origin: MADE IN CHINA

Brand Name: SHENGHONG

Certification: ISO

Model Number: JJM5B

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD1000-1200

Packaging Details: plywood case

Delivery Time: 10 days after payment

Payment Terms: L/C, T/T, Western Union

Get Best Price
Highlight:

honda gas powered winch

,

gas powered winches

Product Name:
5T Gas Engine Powered Winch With YAMAHA Engine For Cable Pulling
Item:
5 Ton Winch
Engine:
YAMAHA Gasoline Engine
Power:
13HP
Application:
Cable Pulling
Weight:
180kg
Product Name:
5T Gas Engine Powered Winch With YAMAHA Engine For Cable Pulling
Item:
5 Ton Winch
Engine:
YAMAHA Gasoline Engine
Power:
13HP
Application:
Cable Pulling
Weight:
180kg
YAMAHA Gas Engine Powered Winch / Cable Pulling Winch 5T Load Capacity

YAMAHA Gas Engine Powered Winch / Cable Pulling Winch 5T Load Capacity​





Quick Detail

1. Model:JJM5B

2. Load Capacity:5T

3. Weight:180kg

4. Power:YAMAHA Gasoline engine GX390



Application

1. It is used for tower erection,pole setting,stringing wire in electrical power line construction.

2. Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.



Brief introduction of engine powered winch

Electric winch is powered by motor. The power is input into the third level enclosed gear reduction box by flexible coupling to lift weight or pull by wire rope and to drive the drum from Low speed shaft end steel key. We use common motor when we need to lift or pull small weight. Conversely, lifting motor is adapted. The common motor can start directly. But the lifting motor starts slowly and stably by cam switch and resistanceadjusting.The brake system adopts electromagneticbraking or hydraulic braking.



Features

1. small size & compact structure.

The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.

2. light weight.

For example, the weight of 3 ton gasoline engine powered winch is 88 kgs. Equipped with diesel engine or motor, the winch is 108 kg. Equipped with imported gasoline engine, the winch is only 82 kg, which is very convenient transported. They are especially suitable for line construction in water area and mountain. String machine equipped with a small capstan, can also be used for a vertical rod, wire. One machine with two function in the wildfield helps to reduce crop losses.

3. high efficiency.

It reduces the labor intensity, improves working efficiency with less operators and convenient field command.

4. safe and reliable.

The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.

5. widely used.

According to customers’ response and field investigation, this machine has wide usage, such as rod up, a vertical rod, the pull rod, line release, line reel, the bridge plate traction, lifting and other purposes.



Engine

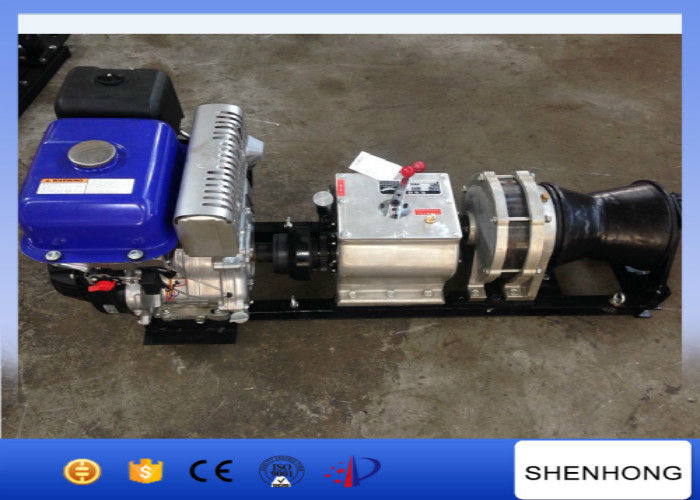

YAMAHA Gas Engine Powered Winch / Cable Pulling Winch 5T Load Capacity 0



Technical Data

Model Type Gear Pulling Force(KN) Pulling Speed(m/min) Power Dimension(mm) Weight(kg)
JJM-5B YAMAHA Fast 9 24 13HP 1100*498*600 180
Mid 15 14
Mid 30 9
Slow 50 5
