5 Ton Gas Powered Winch Honda Gasoline Engine 13HP For Cable Pulling

Product Details

Place of Origin: MADE IN CHINA

Brand Name: SHENGHONG

Certification: ISO

Model Number: JJM5Q

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: plywood case

Delivery Time: 10 days after deposit

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100sets/week

Get Best Price
Highlight:

gasoline powered winch

,

gas powered winches

Product Name:
5 Ton Gas Engine Powered Winch With Honda Gasoline Engine For Cable Pulling
Engine:
Honda Gasoline Engine
Power:
13HP
Load Capacity:
5T
Cable Drum:
It Can Wind 200-300 M Wire Rope
Application:
Cable Pulling
Product Name:
5 Ton Gas Engine Powered Winch With Honda Gasoline Engine For Cable Pulling
Engine:
Honda Gasoline Engine
Power:
13HP
Load Capacity:
5T
Cable Drum:
It Can Wind 200-300 M Wire Rope
Application:
Cable Pulling

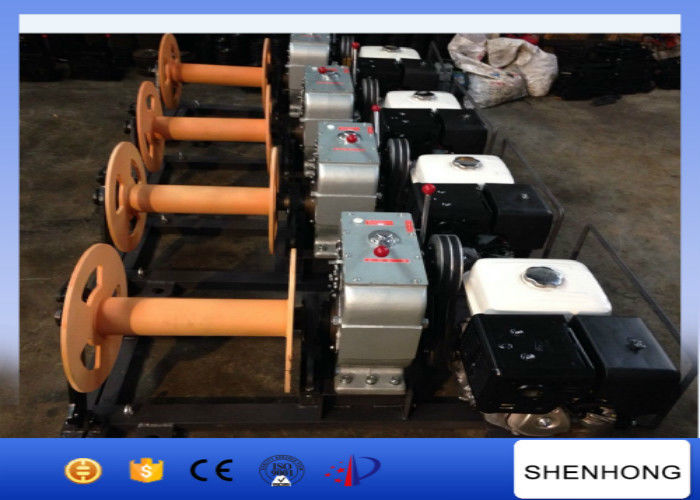

5 Ton Gas Powered Winch Honda Gasoline Engine 13HP For Cable Pulling

5 Ton Gas Powered Winch Honda Gasoline Engine 13HP For Cable Pulling​





Quick Detail

1. Gas engine powered winch

2. Max Pulling Force:50KN

3. Weight:180kg

4. Dimension:1200x600x700mm



Application

It is used for tower erection and sagging operation in line construction. It can also be used for pulling conductor or underground cable



Features

Light weight, easy to operate and maintain. There is mechanical brake system composed in the Gear Box. The brake can hold the steel wire rope when there is emergency.



Technical Data

Model Type Gear Pulling Force(KN) Pulling Speed(m/min) Power Weight(KG)
JJM5Q Slow 50 5 HONDA GASOLINE GX390 13HP 180
Fast 30 11
Reverse - 3.2



HONDA Gasoline Engine

Model 168F-1(GX160) 168F-2(GX200) 177F(GX270) 188F(GX390) 190F(GX420)
Engine type OHV, 4-Stroke, Air-cooled,Single-Cylinder
Borex Stroke(mm) 68×45 68×54 77×58 88×64 90×66
Displacemnet (ML) 163 196 270 389 420
Max. output hp(kw) 5.5HP 6.5HP 9HP 13HP 15HP
Speed(r.p.m) 3600
Compression ratio 8.5:1 8.5:1 8.2:1 8:01 8.3:1
Lgnition system non-contact tranxistorized ignition(tcl)
Stariting system recoil and hand-operated
Fuel Tank Capacity(l) 3.6L 3.6L 6L 6.5L 6.5L
Oil Capacity(l) 0.6L 0.6L 1.1L 1.1L 1.1L
Air Cleaner semi-dry, oil bath, dual-filter
Dimension(mm) 312×365×334 312×365×334 312×375×336 403×449×440 485*455*525
Net Weight (kg) 15/17 16/18 15/17 31/33 34/36



Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.



Package

1. The machine will be loaded in container and fixed with steel wire rope.

2. The accessory and operation manual will be packed in plywood case.



Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.



5 Ton Gas Powered Winch Honda Gasoline Engine 13HP For Cable Pulling 0

5 Ton Gas Powered Winch Honda Gasoline Engine 13HP For Cable Pulling 1



Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
