7L High Pressure Oil Pump

Name: 7L High Pressure Oil Pump
Brand: SHENHONG
SKU: ZCB-700B-2
Rating: 4.7 (174 reviews)

Product Details

Place of Origin: Jiangsu, China

Brand Name: SHENHONG

Certification: ISO

Model Number: ZCB-700B-2

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: negotiation

Packaging Details: Standard export wooden case

Delivery Time: 7 days after payment

Payment Terms: L/C, T/T

Supply Ability: 1000sets per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                cable lug crimping tool, hydraulic compression tool


Oil Tank:	7L	Feature:	Single-Acting Double Speed
Voltage:	220V,0.75KW	Rated Pressure:	70Mpa
Weight:	28kg	Warranty:	1 Year

Oil Tank:	7L
Feature:	Single-Acting Double Speed
Voltage:	220V,0.75KW
Rated Pressure:	70Mpa
Weight:	28kg
Warranty:	1 Year

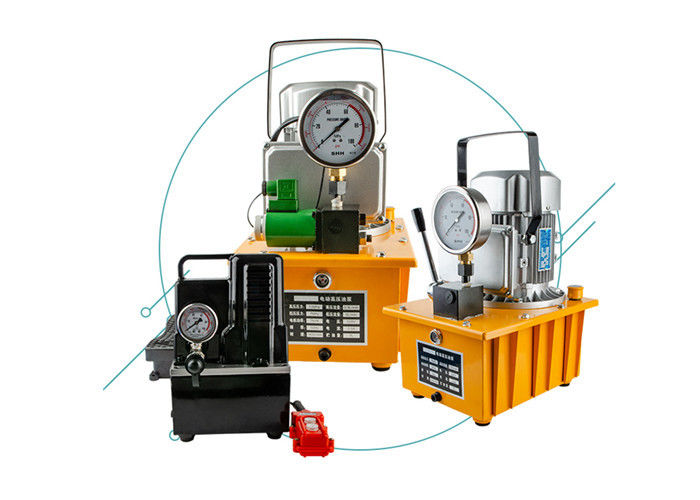

7L High Pressure Oil Pump

High pressure oil pump Electric hydraulic pump Hydraulic press foot hydraulic pump station Single oil circuit

Data Sheet

Item No.	ZCB-700AB-2
Working pressure	high pressure:70Mpa	low pressure:7Mpa
Rated output	high pressure:0.9L/min	low pressure:5L/min
Power Rating	0.75Kw	Speed	1400r/min
Working Power	50-HZ / 220V(Customizable, price add 35 USD)
Oil Capacity	7L(Customizable.)	Type of oil	15#-46# antiwear hydraulic oil

1. The pump can be used as a hydraulic pump for various hydraulic instruments.

2. After the pump and other hydraulic tools are equipped, it can carry out many tasks such as lifting, pressing, bending, bending, straightening, shearing, assembly and disassembly. Reduce labor intensity and improve work efficiency.

Third, the method of use

When using, open the bleed nut, open the switch on the oil collecting block, plug in the power supply, and put the quick connector on the quick head on the hydraulic device. Press the power switch, wait for the motor to rotate for 1-2 minutes, and turn the switch off to the boost state. At this time, the output hydraulic oil will perform various work, and the output hydraulic oil will pressurize itself with the increase of the load to carry out various work until 70MPA. .

After the work is finished, open the switch to unload. After the hydraulic oil is returned to the oil, remove the quick joint sleeve, screw the bleed nut, remove the electric screw, and close the switch.

Fourth, the role of maintenance considerations

1. The oil pump uses No. 7 hydraulic oil (mechanical oil) oil requirements: the thinner the better.

2. The oil storage capacity must be within the upper range of the oil window.

3. When refueling and oil change, it must be filtered with oil filter mesh of more than 80 mesh. When replacing, you need to clean the fuel tank. The oil change period is six months.

4. Working oil temperature is 10 degrees Celsius to 50 degrees Celsius.

5. Open the bleed nut before starting the electric pump and open the switch to the unloading position.

6. If the motor temperature is too high during use, it should be stopped. Allow to cool before use.

7. The pump has been adjusted before leaving the factory. It should not be adjusted at will. If it needs to be re-adjusted, it must be done with a pressure gauge.

8. The high pressure oil pipe is delivered to the factory and passed the 105MPA test. However, because the hose is easy to age, the user should check it frequently, usually for six months. It is frequently used for three months. When it is inspected, it can be used for 87.5MPA. If it is damaged, raised or leaked, it cannot be used.

9. The bearing is usually cleaned once every six months, and grease should be added during assembly.

7L High Pressure Oil Pump 0

7L High Pressure Oil Pump 1
