Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: DSJ
Payment & Shipping Terms
Minimum Order Quantity: 1sets
Price: negotiation
Packaging Details: Standard export wooden case
Delivery Time: 7-10 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets per month
Usage: |
Cable Pulling |
Type: |
Electric Cable Feeder Cable Pulling Machine |
Application: |
Stringing Electric Power Cable |
Electric Motor: |
1.5KW × 2 |
Weight(KGS): |
180 - 200 |
Oversize Dimension(mm): |
1020*590*400 |
Usage: |
Cable Pulling |
Type: |
Electric Cable Feeder Cable Pulling Machine |
Application: |
Stringing Electric Power Cable |
Electric Motor: |
1.5KW × 2 |
Weight(KGS): |
180 - 200 |
Oversize Dimension(mm): |
1020*590*400 |

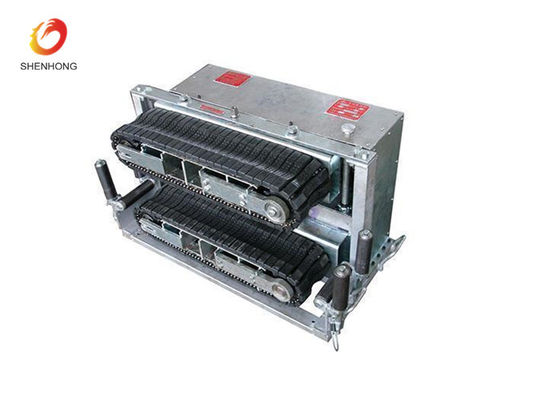

Durable Electric Cable Feeder Cable Pulling Machine For Stringing Electric Power Cable
This cable feeder is used for stringing the large diameter of electric power cable and communication cable. If the core grinding is required, it should be indicated in the contract.
Uses: to string large diameter electric power cable and communication cable.
Notes:
1. Please writie in contract clearly if need to purchase winch.
2. Each cable feeder including a cable reel and sub-control box, the cable reel can packaging 70m cable.
3. The control box is free if the quantity you purchase over 6 sets
Technical Parameters
| Item Number | Diameter of Suitable Cable (mm) | Pulling Force (kN) / Speed (m/min) | Motor Power (kW) | Overall Dimensions (mm) | Weight (kg) | Remark |
| 21102 | Φ60-Φ140 | 5/6.5 | 1.5 | 948×470×542 | 203 | Updown Configuration crawler |
| 21103B | Φ40-Φ150 | 5/6.5 | 2*0.55 | 900×617×452 | 190 | Right and left Configuration crawler |
| 21105 | Φ40-Φ130 | 5/6.5 | 1.5 | 1060×437×690 | 148 | V type configuration crawler |
| 21106 | Φ50-Φ200 | 8/6.5 | 2*0.75 | 1000×657×464 | 220 | Right and left Configuration crawler |
