High Performance Cable Puller Tensioner Stringing Of Diversified Conductors And Ground Wires

I'm Online Chat Now
China SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD certification
China SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD certification
The Tools for underground cable pulling project works very well.I am going to introduce to other companies in local.

—— Mr. Ara Minasian

I would like to tell you that I have already begun to distribute the catalog on the Vietnam companies to transfer electricity and all the companies

—— Hung Do Bui

We will try very hard to build the market for your products in Kenya.

—— Mr. John Gachagua

High Performance Cable Puller Tensioner Stringing Of Diversified Conductors And Ground Wires

large.img.alt
small.img.alt small.img.alt

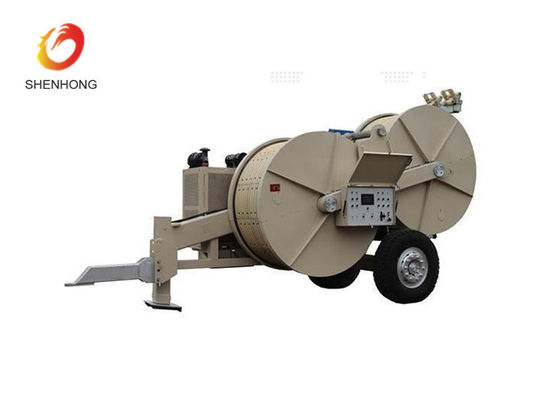

Large Image :  High Performance Cable Puller Tensioner Stringing Of Diversified Conductors And Ground Wires Get Best Price

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: SHENHONG
Certification: ISO
Model Number: SA-YZ2×90
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: get latest price
Packaging Details: 20" container
Delivery Time: 30 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 sets per month
Detailed Product Description
Type: Hydraulic Tensioner Maximum Tension (kN): 2×90 Or 1×180
Continuous Tension (kN): 2×80 Or 1×160 Maximum Speed (km/h): 5
Bullwheel Bottom Of Groove Diameter (mm): 1850 Number Of Grooves: 2× 6
Maximum Pullback (kN): 2×90 Or 1×180 Maximum Diameter Of Suitable Conductor (mm): 48.8
High Light:

hydraulic pulling machine

,

conductor stringing equipment



High Performance Cable Puller Tensioner Stringing Of Diversified Conductors And Ground Wires





Our SA-YZ2×90 Hydraulic Tensioner is applicable for the tension stringing of diversified conductors and ground wires. It can achieve the constant-tension conductor stringing, due to the infinitely variable tension control. The bullwheel of this product is lined with abrasion resistant MC nylon material.

Furthermore, this SA-YZ2×90 Hydraulic Tensioner has two powerful configurations. Two sets of hydraulic power output interface are capable of connecting the hydraulic conductor reel stand. The spring applied hydraulically released multi-plate brake will act automatically in case of hydraulic failure. Therefore, the safety can be well ensured.



Essential Parameters



SA-YZ2×90 Hydraulic Tensioner
Item number :07201
Essential parameter
Maximum Tension(kN):2×90 or 1×180 ,
Continuous Tension(kN):2×80 or 1×160,
Maximum speed (km/h):5
Bull wheel bottom of groove diameter(mm):Φ1850
Number of grooves:2×6
Maximum pull-back (kN):2×90 or 1×180
Maximum pull-back speed(km/h):2×1.7
Maximum suitable conductor diameter (mm): Φ48.8
Engine power /speed (kW/rpm):82.5/2500
Dimensions (mm): 5300×2290×2950
Weight(kg):10500



Main Components

Engine Deutz air-cooled diesel engine
Main Pump/Motor Rexroth (BOSCH)
Main Hydraulic Valve Rexroth (BOSCH)
Reducer RR (Italian)
Radiator AKG
Hydraulic Instrument
