Product Details
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: DLTC-2
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: export standard packing
Delivery Time: 15-20 days after payment
Payment Terms: L/C, T/T, Western Union
Product Name: |
5 Ton Cable Drum Trailer |
Load Capacity: |
5T |
Type: |
Cable Drum Trailer |
Application: |
Underground Cable Installation |
Usage: |
Transport Cable Drums |
Item: |
Cable Carriage Vehicle |
Product Name: |
5 Ton Cable Drum Trailer |
Load Capacity: |
5T |
Type: |
Cable Drum Trailer |
Application: |
Underground Cable Installation |
Usage: |
Transport Cable Drums |
Item: |
Cable Carriage Vehicle |

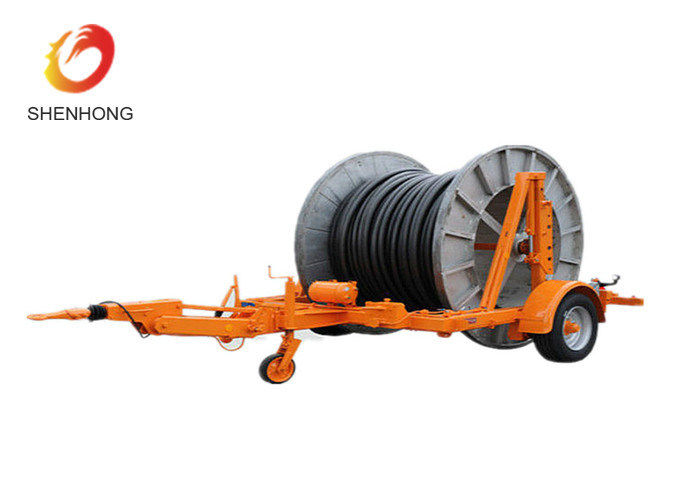

5 Ton Cable Drum Trailer , Cable Reel Trailer , Cable Carrier
Application
1. Used for cable drum hauling and cable pulling-pushing.
2. Adopt mechanical lifting method, simple operation, stable and durable. The traction tire on the font of cable trailer can change angle at random and easy to move.
3. Equipped with damping device, the stability of trailer was increased greatly.
Remarks: the trailer can be transported by container after disassembly.
Please contact us is you have any requirement, and we can make products with special specification as your requirements.
Technical Data
| Model | Max coil diameter | Wide | Length | Wide | High | ||
| (T) | (kg) | mm | mm | mm | mm | mm | |
| LZ-3T | 3T | 900 | 2300 | 1250 | 3800 | 2300 | 2200 |
| LZ-5T | 5T | 1500 | 2800 | 1450 | 4000 | 2600 | 2500 |
| LZ-8T | 8T | 2300 | 3300 | 1750 | 4300 | 3200 | 2700 |
| LZ-10T | 10T | 2800 | 3500 | 1850 | 4300 | 3400 | 2800 |
We can make products with special specification as your requirements.
Brake System
