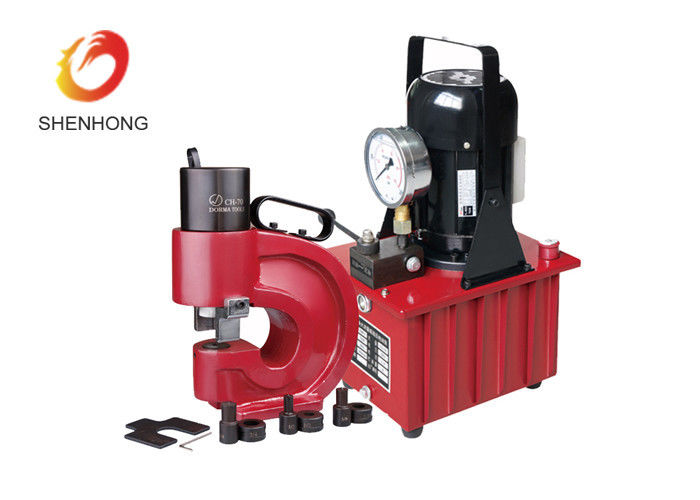

Hydraulic Punch Driver Busbar Punch Tool Hydraulic Hole Punch Tool CH-60

Product Details

Place of Origin: MADE IN CHINA

Brand Name: SHENGHONG

Certification: ISO

Model Number: CH-60

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: negotiation

Packaging Details: wood case

Delivery Time: 10 days after payment

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000sets/month

Get Best Price
High Light:

cable lug crimping tool

,

hydraulic compression tool

Product:
Hydraulic Punch Driver
Punching Force:
31T
Punch Range:
10mm Of Copper Sheet
Depth Of Throat:
95mm
Application:
Punch Hole
Weight:
19kg
Product:
Hydraulic Punch Driver
Punching Force:
31T
Punch Range:
10mm Of Copper Sheet
Depth Of Throat:
95mm
Application:
Punch Hole
Weight:
19kg
Hydraulic Punch Driver Busbar Punch Tool Hydraulic Hole Punch Tool CH-60

Hydraulic Punch Driver Busbar Punch Tool Hydraulic Hole Punch Tool CH-60



Product Description

CH -60/70/80 is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.



Introduction

hydraulic punching tools CH-60 is a single acting hydraulic bus bar punching tool. It is applicable for punching on Cu and Al bus bar, punching range is between 10.5mm and 20.5mm diameter, bus bar thickness should below 8mm.

In order to make punching precisely, 4 pairs punching dies are attached as standard accessories, their size are Ø10.5mm Ø13.8mm Ø17mm Ø20.5mm separately. For special application, dies customization is also available.

As a remote control hydraulic tool, external single acting hydraulic pump is required. All the Hand pump, Foot pump and electric hydraulic pump in our production range are compatible with CH-60, they can deliver pressurized oil to CH-60 through oil pipe and provide 10000psi working pressure.

With the help of hydraulic power, sharp and high-quality punching dies, position unit, punching can be made easily, fast and precisely.

For similar products, CH-70 is strongly recommended, it’s working force and punching capacity are better than CH-60.



Features:

1. Remote Control Style: Works with an external hydraulic pump. With the help of hydraulic power, punching become easy and fast. Foot Hand and Electric Hydraulic pumps are all available in our products range

2. 4 Pairs Standard Punching Dies: For precise punching, select proper dies accoding to application

3. Dies Size: 10.5mm 13.8mm 17mm 20.5mm

4. Punching Dies Customization is Available if samples and Drawings can be provided

5. Steel Case Package: Protect Tools well



Specification

Model CH-60
Punching force 31T
Max thickness of sheet copper sheet 10mm
  metal sheet 6mm
Depth of thoat 75mm
Height  390mm
Weight  17.5kg
Package carton
Size 390x250x140mm
Accessories Ø10.5 Ø13.8 Ø17 Ø20.5mm
