Alloy Overhead Line Construction Tools , Swivel Joints For Connecting wires and wire ropes

Product Details

Place of Origin: Jiangsu,China

Brand Name: Shenhong

Certification: ISO

Model Number: SL

Payment & Shipping Terms

Minimum Order Quantity: 5 piece/pieces

Price: US $5-100 / Piece

Packaging Details: Plastic case

Delivery Time: 7 work days after deposit

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000 Piece/Pieces per Month

Get Best Price
High Light:

hydraulic compression tool

,

hydraulic lug crimping tool

Type:
Cable Roller Tube Entrance
Material:
Alloy
Warranty:
1 Year
Weight(kg):
0.2-17
Rated Load(KN):
5-400
Type:
Cable Roller Tube Entrance
Material:
Alloy
Warranty:
1 Year
Weight(kg):
0.2-17
Rated Load(KN):
5-400

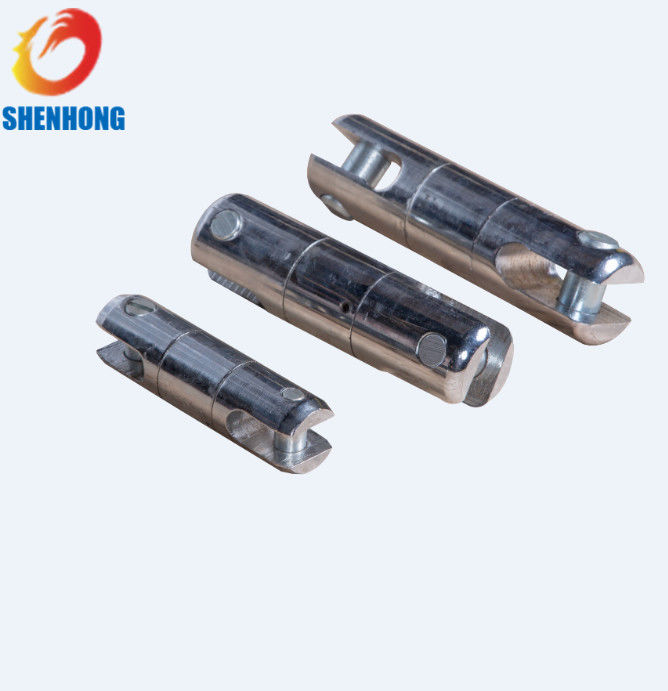

Alloy Overhead Line Construction Tools , Swivel Joints For Connecting wires and wire ropes

Alloy Overhead Line Construction Tools , Swivel Joints For Connecting wires and wire ropes





Application

In transmission line, traction of wire or underground cables, it is used to connect with the net sleeve and wire rope, in order to release wire rope twisting.



Features

High strength, light weight, and good looking.

It can smoothly go through the machine traction pulley and the tension machine.



Technical Data For High Quality Swivel Joints For Connecting wires and wire ropes



Model Main Size(mm) Rated Load(KN) Weight(KG)
A B C D E
SLX-0.5 19 61 40 8 9 5 0.2
SLX-1 30 100 70 12 13 10 0.4
SLX-2 35 120 90 14 14 20 0.55
SLX-3 37 129 95 16 16 30 0.65
SLX-5 42 154 116 18 17 50 1.5
SLX-6.5 51 185 140 20 19 65 2
SLX-8 57 220 165 24 22 80 2.4
SL80Y 57 207 152 24 20 80 2.4
SL130 62 248 192 26 24 130 3.5
SL180 75 294 222 26 26 180 7.2
SL250 85 331 251 30 30 250 10.6
SL250Y 80 323 243 30 30 250 8
SL320 85 346 264 38 30 320 9.7
SL400 100 383 293 43 33 400 17
