Product Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Shenhong
Certification: ISO
Model Number: CH-60
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: US $100-500 / Set
Packaging Details: Wooden case
Delivery Time: 10 days after the deposit
Supply Ability: 500 Set/Sets per Month
Type: |
Hydraulic Puncher |
Application: |
Punching |
Output(Ton): |
31 |
Weight(kg): |
25 |
Width(mm): |
150 |
Max Thickness(mm): |
10 |
Warranty: |
1 Year |
Type: |
Hydraulic Puncher |
Application: |
Punching |
Output(Ton): |
31 |
Weight(kg): |
25 |
Width(mm): |
150 |
Max Thickness(mm): |
10 |
Warranty: |
1 Year |

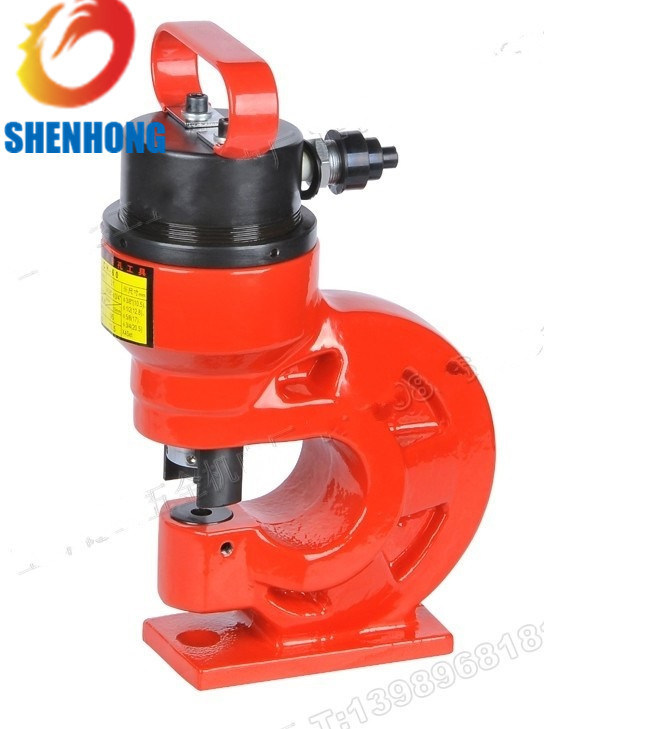

Output 31 T Easy Fast and Clean Punching Hydraulic Puncher CH-60
Tools Introduction
Hydraulic Punching Tools CH-60 is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm). Busbar thickness should below or equivalent to 8mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.
Features
Operation speed of CH-60 Hydraulic Hole Puncher is fast than electric drill. It only need a few seconds for punching and there is no burr after punching.
With pressing mechanism design, punching precision is good.
With the hydraulic pump as power, it can used in no power site.
1. Remote Control Style: Works with an external hydraulic pump. With the help of hydraulic power, punching become easy and fast. Foot Hand and Electric Hydraulic pumps are all available in our products range
2. 4 Pairs Standard Punching Dies: For precise punching, select proper dies accoding to application
3. Dies Size: 10.5mm 13.8mm 17mm 20.5mm
4. Punching Dies Customization is Available if samples and Drawings can be provided
5. Steel Case Package: Protect Tools well
Technical Data
Model | CH-60 | CH-70 | CH-80 |
Output(Ton) | 31 | 35 | 50 |
Thickness iron(mm) | 6 | 10 | 16 |
Thickness copper(mm) | 10 | 12 | 20 |
Throat Depth(mm) | 95 | 110 | 115 |
Weight(kg) | 19 | 38 | 50 |
Model(mm) | 10.5,13.8,17.5,20.5 | 10.5,13.8,17.5,20.5 | 16,18,22,25 |
Size(mm) | 350×245×110 | 370×240×150 | 400×260×160 |
