Product Details
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: JMJ5
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: export package
Delivery Time: 15-20 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets per month
Max Load: |
50KN |
Engine: |
Diesel |
Power: |
15HP |
Weight: |
650kg |
Max Speed: |
37m/min |
Name: |
5 Ton Single Capstan Tractor Cable Pulling Winch |
Max Load: |
50KN |
Engine: |
Diesel |
Power: |
15HP |
Weight: |
650kg |
Max Speed: |
37m/min |
Name: |
5 Ton Single Capstan Tractor Cable Pulling Winch |

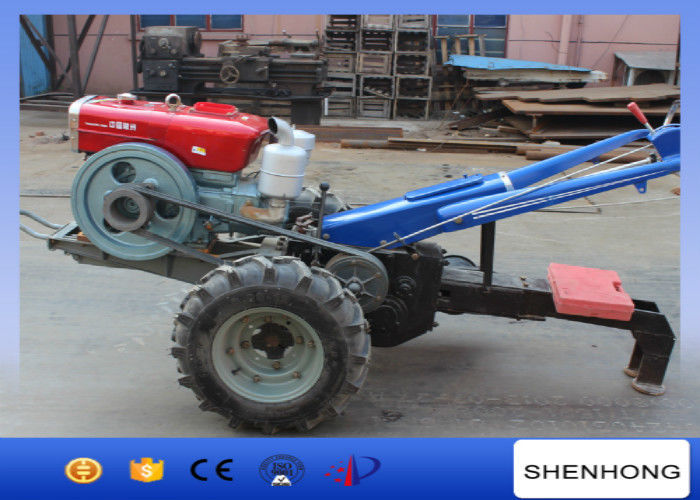

Diesel Engine Single Capstan Tractor Cable Pulling Winch 37M / Min
Application
5 Ton Hand Tractor Tugger Winch is used for stringing wire in electrical power line construction,crane lifting.
Features
1) four gear,forward gear and reverse gear
2) speedy and convenient
3) high quality
4) easy operation
5) Reliable
Quality Control
We have the complete production equipments and professional production team to manage the whole process from producing to packing and shipping.All of the products will be 100% tested before the delivery to ensure the quality of our products.
Our Values
1, Take First-Class Quality as Target and First-class Service.
2, As Responsibility, To Succeed By Scientific Management.
3, Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data
| Model Type | Overall Size(mm) | Weight(kg) | Power | Gear | Pulling Force(KN) | Pulling Speed(m/min) |
| JMJ-5 | 2670*1040*1300 | 600 | Dongfeng Type 12 walking tractor | Slow | 50 | 7.8 |
| Mid | 27 | 13.6 | ||||
| Mid | 17 | 25 | ||||
| Quick | 10 | 37 |
